Ethernet cable Category 5e, Class D for use in drag chain applications - verified up to 100 MHz
Industrial Ethernet cable Cat.5e for high flexible use; PUR (AWM-approval) outer sheath material, design 2 or 4 x2xAWG26/19
- Industrial Ethernet cable
- For highly flexible applications
- Only for patch cable applications
(max. 60 m)
Benefits
- Seamless communication from the sensor/actuator level to the Internet
- Screened against interference
- Can be used in dry or damp rooms
- Industrial use
- cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Application range
- 2pair: 10/100 Mbit/s for Industrial Ethernet
- 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
- Only for patch cable applications
(max. 60 m) - suitable for EtherCAT and EtherNet/IP applications
- Power chain applications
Product features
- Premium screening against electromagnetic interference
- Halogen-free outer sheath
- cables with PUR jacket: 1000 V UL- rating for installation next to power cables
Norm references / Approvals
- UL AWM Style 21576
- Flame-retardant according IEC 60332-1-2
- Halogen-free according to VDE 0472-815

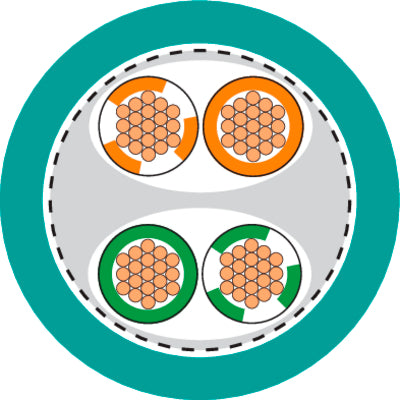

Product Make-up
- Bare stranded copper wire, 26AWG (19 x 0.10), (0.14 mm²)
- Inner sheath: thermoplastic elastomer, halogen-free
- 2 or 4-pair version
- Screening: wrapped with braided tinned-copper wires
- PUR outer sheath
- Colour: water blue (similar to RAL 5021)
Recommended for the ETHERLINE® Cat.5e FD
