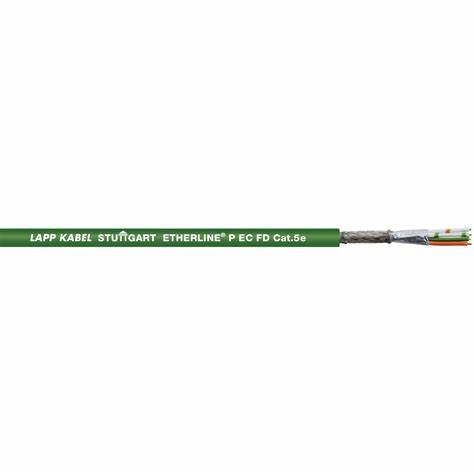

ETHERLINE® EC FD Cat.5e

Benefits

• Can be used for Industrial Ethernet in harsh industrial environments
• Can be used in dry or damp rooms
• Lower space requirement

Application range

• suitable for EtherCAT and EtherNet/IP applications
• For highly flexible applications (power chains, moving machine parts)
• Many applications with Industrial Ethernet, e.g. EtherCat, i.e. fixed installation, flexible and highly flexible use
• For internal wiring of electric and electronic equipment in switch cabinets
• Only for patch cable applications
  (max. 60 m)

Product features

• Meets the requirements according to Cat. 5e and class D
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference

Norm references / Approvals

• UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214-02
• Flame-retardant according to UL VW1/CSA FT1
• Halogen-free according to VDE 0472-815

Product Make-up

• Bare stranded copper wire, 26AWG (19 x 0.10), (0.14 mm²)
• Core insulation: PE
• insulation colour-codes: orange/white-orange; green/white-green
• Star quad
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Outer sheath: PUR compound, halogen-free
• Colour: green (based on RAL 6018)
