ETHERLINE® EC FD Cat.5e M12F

Benefits

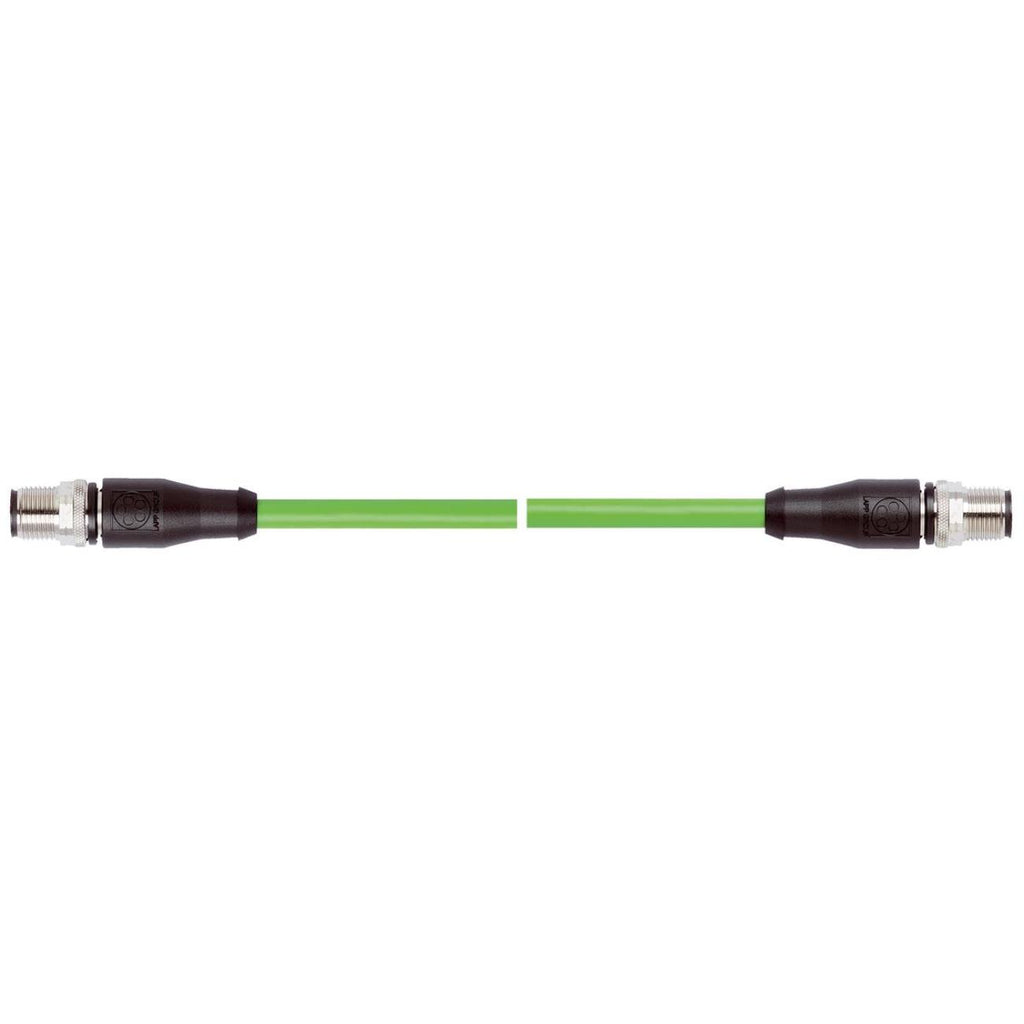

• Connecting cable assembled on one or on both sides saves installation time and reduces or eliminates the potential for on-site assembly errors.
• High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and a high degree of coverage (SF/UTP).
• Available with RJ45, M8 or M12D connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M8/M12D connector is useful for applications with shock and vibrations.
• The angled shape of the connector is suitable for the space-saving cable outlet.
• Halogen-free core insulation and sheath compound to meet special fire protection requirements.

Application range

• Cable design enables highly flexible, constantly flexing use in moving machine parts and in the cable chain.
• Also suitable for EtherCAT and EtherNET/IP applications.
• Compliant with standards for use in buses (fire behaviour test according to UNECE-R 118 for vehicles of category M3 (II and III)).
• The PUR outer sheath and connectors withstand high mechanical loads.
• The PUR outer sheath is insensitive to mineral oil-based lubricants and is chemically resistant in many cases.

Product features

• Meets the requirements according to Cat. 5e and class D
• 2pair: 10/100 Mbit/s for Industrial Ethernet

Product Make-up

• Braided conductor, 2x2x AWG26/19
• Overall screening with copper braid and plastic-laminated aluminium foil
• Outer sheath made of PUR
• Colour: green (based on RAL 6018)

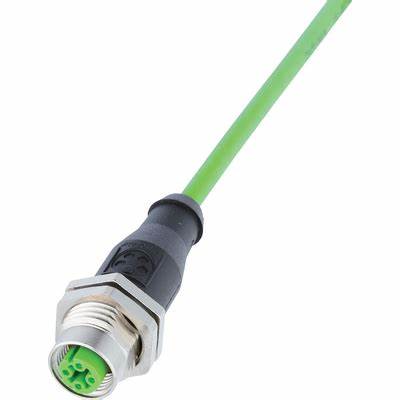

• pre-assembled patchcords with M12 socket, D-coded
• 4 pole M12 connector with vibration protection
