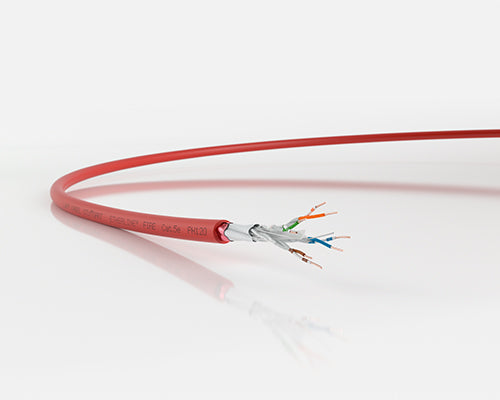

Industrial Ethernet cable with insulation integrity
Industrial Ethernet cable for fixed installation, insulation integrity for 120 minutes, qualified for 1 GBit/s
insulation integrity for at least 120 minutes in the event of fire
Benefits
- Ensures that the cable can still transmit
data during and after a fire for 120 min
(according to EN50200) - High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
Application range
- In industrial areas that use fire as a tool
- Highly combustible or fire-prone areas
- for fixed installation
- For indoor use
Product features
- Fire behaviour:
- Halogen-free (IEC 60754-1 & EN50267-2-1)
- Flame-retardant (IEC 60332-1)
- Fire retardant (IEC 60332-3-24)
- Low smoke density (IEC 61034-2) - Circuit integrity for data cables PH120 (120 minutes) acc. to EN 50289-4-16
