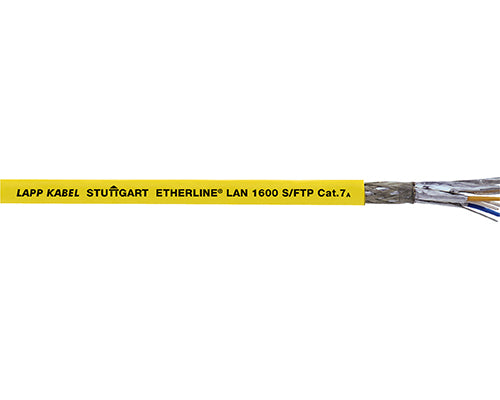

Data cable for Category 7A/ class FA - verified up to 1600 MHz

AED 8.00

Available Now!

Data cable for Category 7A/ class FA - verified up to 1600 MHz

  • CPR: Article number choice under
  • Verified up to 1600 MHz at max. 30m cable length (data centers)

product information (PDF)



  • LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801

Application range

  • Mainly used where the terminal density is very high, e.g. for wiring office, administration and development buildings in the tertiary area (floor wiring).
  • 1500 MHz: Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)
  • 1600 MHz: at max. 30m length (typical in data centers)

Product features

  • Transfer of digital and analogue data signals
  • IEEE 802.3: 10/100/1000Base-T, 10GBase-T IEEE 802.5: ISDN; FDDI; ATM; cable sharing IEEE 802.3at: suitable for PoE, VoIP
  • Flame-retardant according IEC 60332-1-2
  • No flame-propagation according to IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)

Norm references / Approvals

  • LAN Cat.7A cables from Lapp Kabel for "Structured Cabling Systems” meet the requirements in accordance with EIA/TIA-568 and TSB36 as well as ISO/IEC 11801 or EN 50173 (Class FA - permanent link).
  • Exceeds the requirements of EN 50173 and ISO/IEC 11801 standards

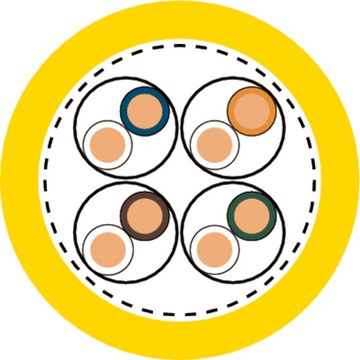

Product Make-up

  • Solid conductor 4x2xAWG22/1
  • Core insulation: cellular polyolefin
  • S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
  • Outer sheath: halogen-free, flame-retardant compound
  • Colour: yellow (RAL 1021)
