ETHERLINE® LAN 350 Cat.6

Ethernet cable for Category 6/ class E - verified up to 350 MHz Data cable for Category 6/ class E - verified up to 350 MHz CPR: Article number choice under www.lappkabel.com/cpr

Free

Available Now!

Ethernet cable for Category 6/ class E - verified up to 350 MHz

Data cable for Category 6/ class E - verified up to 350 MHz

CPR: Article number choice under www.lappkabel.com/cpr

Benefits

  • LAN cables for structured building cabling according to EN 50173 and ISO/IEC 11801

Application range

  • Areas where the end device density is very high
  • For office wiring, administration and development buildings in the tertiary sector (floor wiring).
  • Cable length in tertiary area (horizontal area, floor) should not exceed a length of 100 m in accordance with the ISO/IEC 11801 and EN 50173 standards (90 m in cable duct + 10 m in working area)

Product features

  • Transfer of digital and analogue data signals
  • IEEE 802.3: 10/100/1000Base-T
    IEEE 802.5: ISDN; FDDI; ATM
  • Flame retardant acc. to IEC 60332-1-2

Norm references / Approvals

  • LAN CAT.6 cables from Lapp Kabel for "Structured Cabling Systems” meet the requirements in accordance with EIA/TIA-568 and TSB36, as well as ISO/IEC 11801 or EN 50173 (Class E - permanent link).
  • Class E out of the standard ISO/IEC 11801 corresponds to CAT.6

Product Make-up

  • Solid conductor

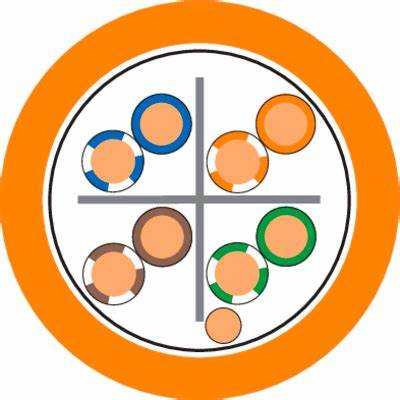

  • U/UTP: no overall or pair screening, 2 cores stranded to pair, 4 pairs stranded to bundle with central cross
  • F/UTP: Foil shielding as overall shielding, 2 cores stranded to pair, 4 pairs stranded to bundle with central cross

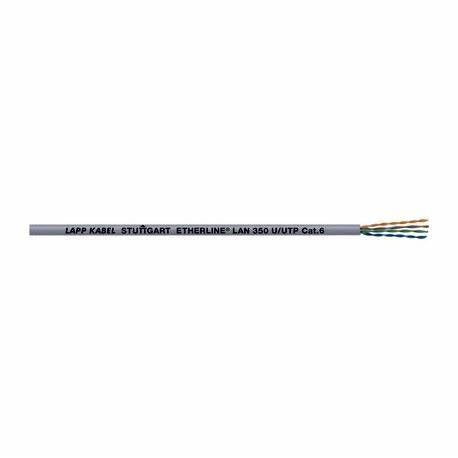

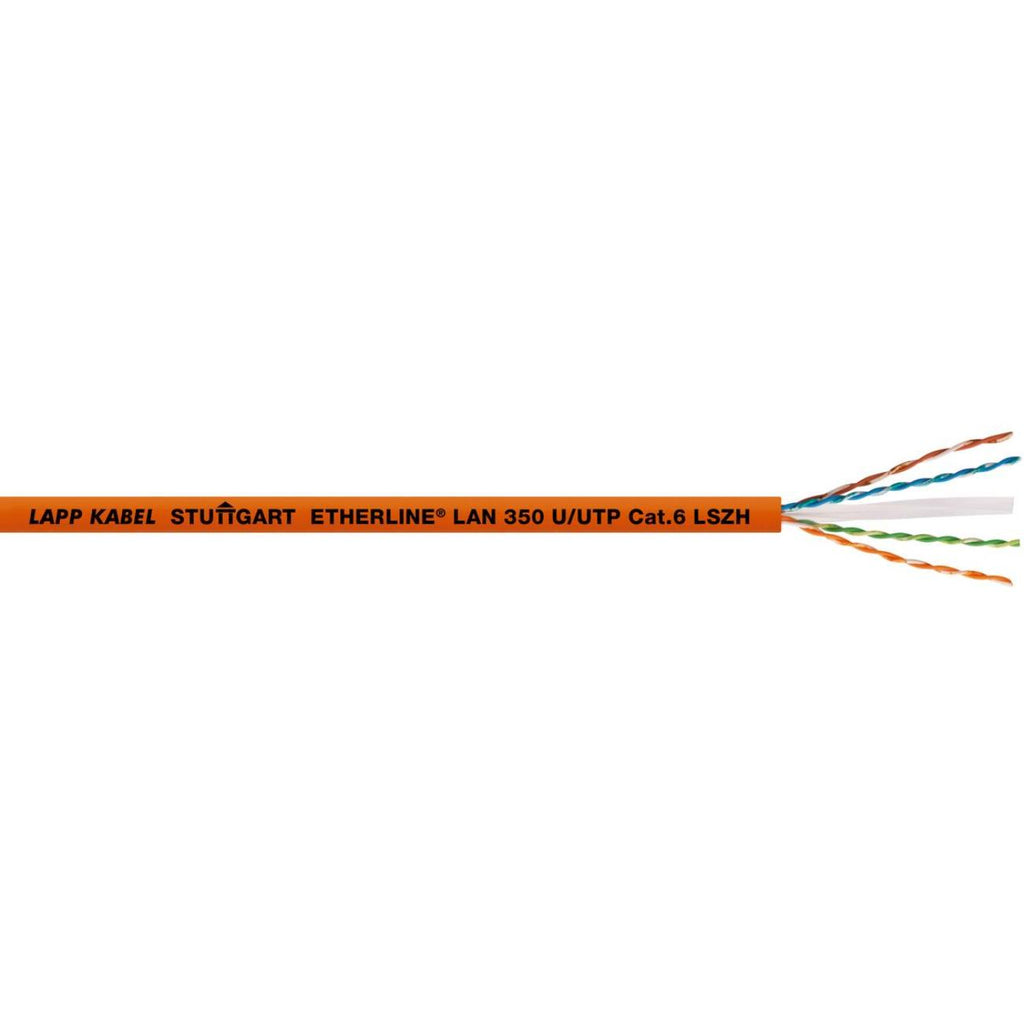

  • outer sheath either as PVC (grey RAL 7035) or LSZH (orange RAL 2003)
