ETHERLINE® PN Cat.5

Industrial Ethernet cable Cat.5 for fixed installation, for PROFINET applications type A; design 2x2xAWG22/1

• CPR: Article number choice under www.lappkabel.com/cpr
• For PROFINET applications type A

• product information (PDF)

Benefits

• Can be used in dry or damp rooms
• Screened against interference
• Can be used for Industrial Ethernet in harsh industrial environments
• 2pair: 10/100 Mbit/s for Industrial Ethernet

Application range

• for industrial secondary and tertiary cabling according to EN 50173-3
  ISO/IEC 24702
• Wiring of machines, tools, devices, appliances and control cabinets
• suitable for EtherCAT and EtherNet/IP applications

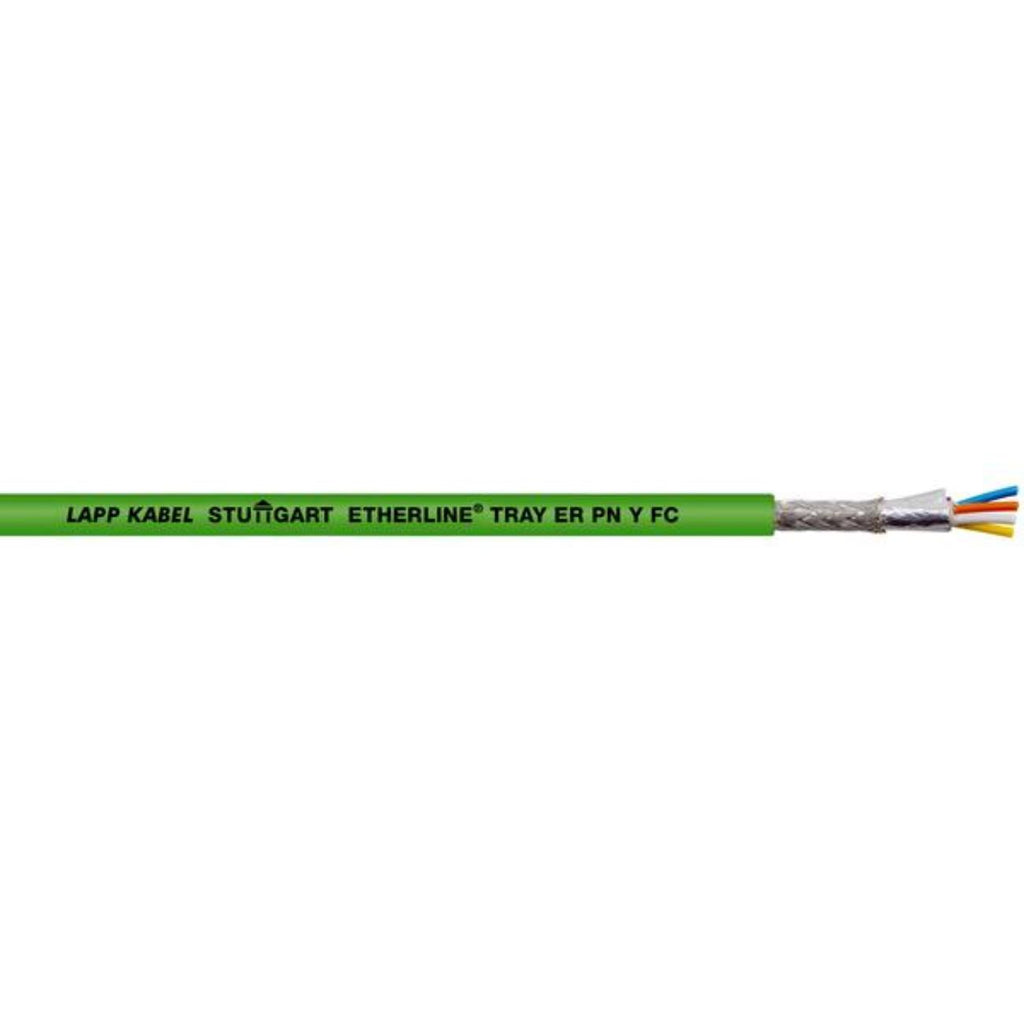

• ETHERLINE® TRAY ER PN Y FC: installation in open cable trays without any conduit

Product features

• Fixed Installation
• CAT.5-Performance
• FC: "Fast Connect" cable design
• ETHERLINE® Y FC, ETHERLINE® YY, ETHERLINE® TRAY ER PN Y FC : flame-retardant according to CSA FT-4

Norm references / Approvals

• Flame retardant acc. to IEC 60332-1-2
• ETHERLINE® Y FC with PLTC approbation and AWM Style 21694
• ETHERLINE® PN Cat.5e YY with UL CMG
• ETHERLINE® PN Cat.5e Y with UL CMX
• ETHERLINE® TRAY ER PN Y FC with PLTC ER approval

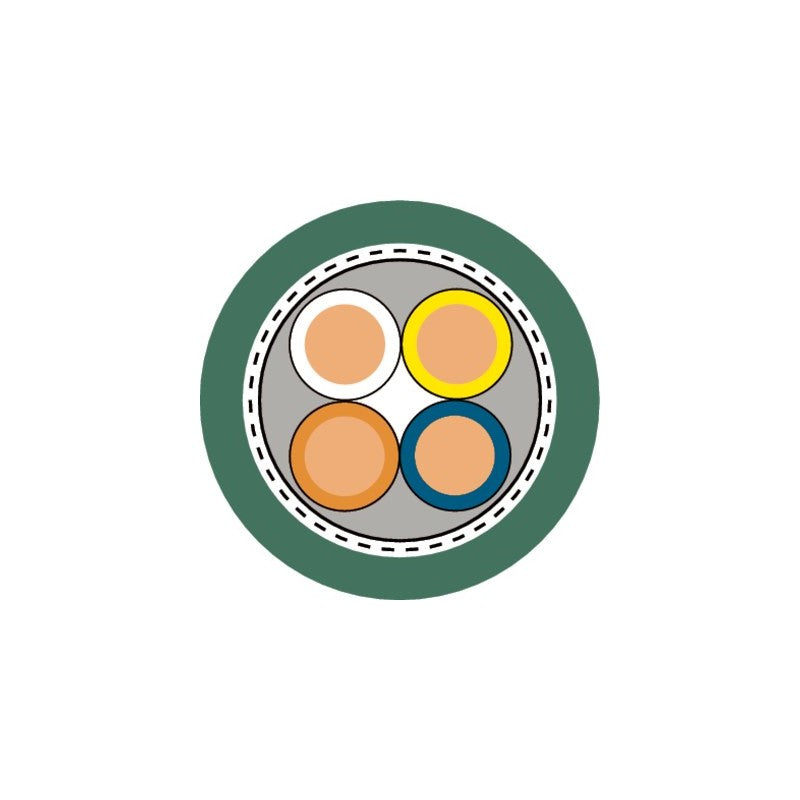

Product Make-up

• Version for outdoor use: Colour black (similar to RAL 9005)
• Solid bare copper wire AWG22
• Core insulation: PE
• Star quad
• Overall screening with copper braid and plastic-laminated aluminium foil
• Outer sheath: PVC
• Colour: green (based on RAL 6018)
