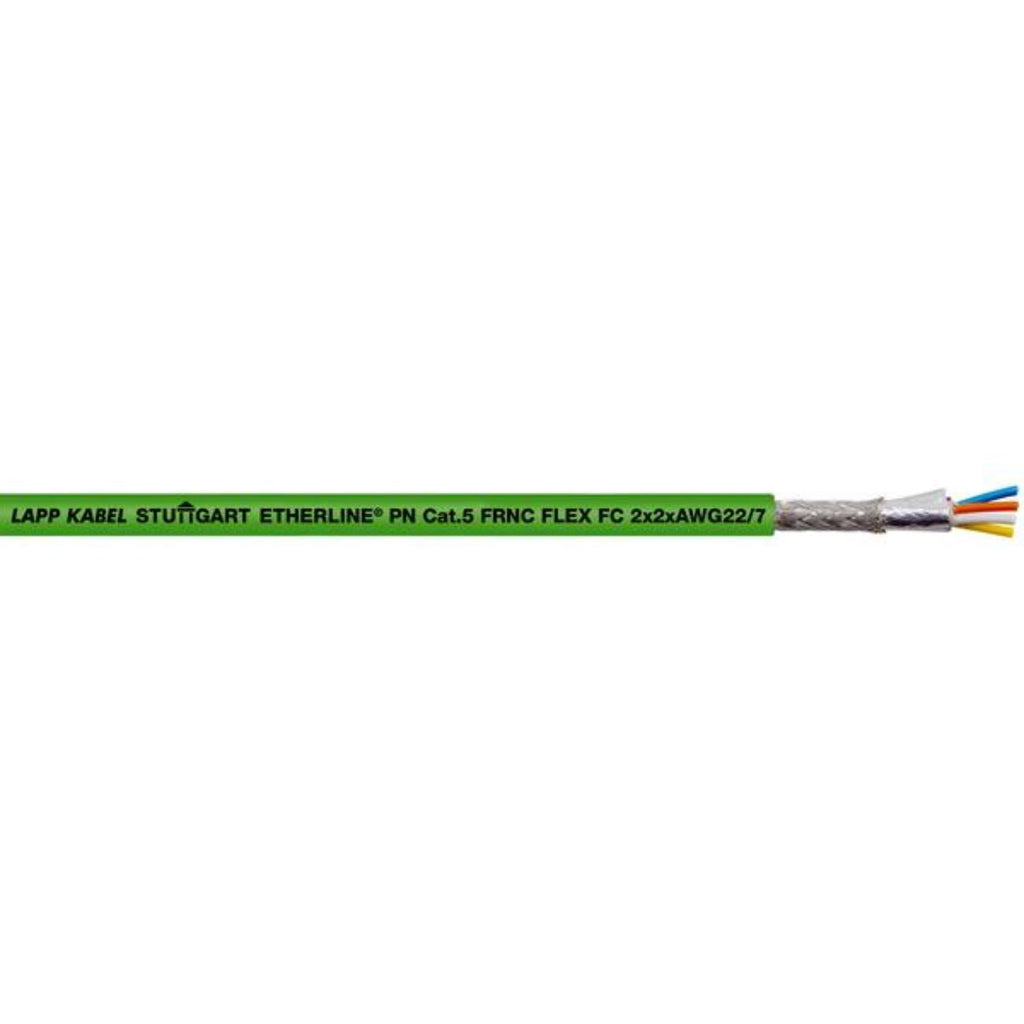

ETHERLINE® PN Cat.5 FLEX

ETHERLINE® PN Cat.5 FLEX Flexible use Industrial Ethernet cable Cat.5 for flexible use, for PROFINET- application Type B, design 2x2xAWG22/7; PVC or FRNC outer jacket, UL- approval

Free

Sold Out

ETHERLINE® PN Cat.5 FLEX

Flexible use

Industrial Ethernet cable Cat.5 for flexible use, for PROFINET- application Type B, design 2x2xAWG22/7; PVC or FRNC outer jacket, UL- approval

  • CPR: Article number choice under www.lappkabel.com/cpr
  • For Profinet applications
  • Flexible use

Benefits

  • For PROFINET applications type B
  • Can be used in dry or damp rooms
  • Screened against interference
  • Can be used for Industrial Ethernet in harsh industrial environments
  • 2pair: 10/100 Mbit/s for Industrial Ethernet

Application range

  • for industrial secondary and tertiary cabling according to EN 50173-3
    ISO/IEC 24702
  • Wiring of machines, tools, devices, appliances and control cabinets
  • suitable for EtherCAT and EtherNet/IP applications
  • For flexible applications
    (7-wire stranded conductor)

Product features

  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • CAT.5-Performance
  • FRNC Version: Halogene free and flame retardant
  • Fast Connect (FC) cable design

Norm references / Approvals

  • The cable is UL/CSA-certified (CMG)
  • ETHERLINE® PN Cat.5 Y FLEX FC: ECOLAB®
    Industry standard for innovation and efficiency in the field of professionllen cleaning and disinfection

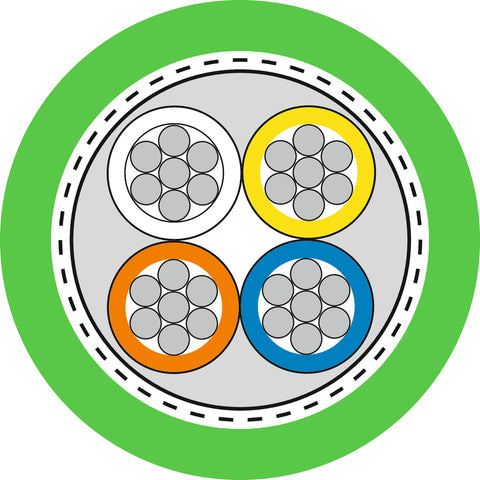

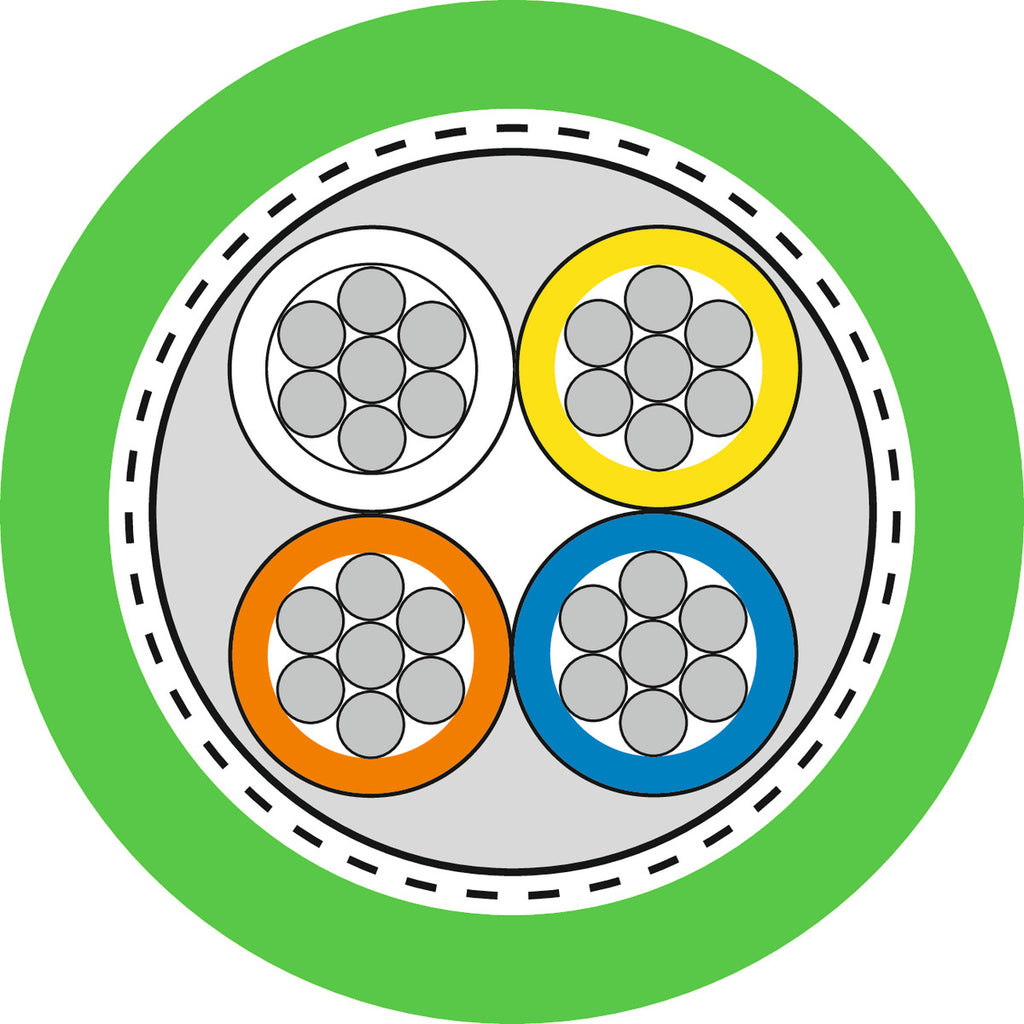

Product Make-up

  • Stranded tinned 7-wire conductor
  • Core insulation: PE or PP
  • Star quad
  • Inner sheath made of PVC or FRNC
  • Overall screening with copper braid and plastic-laminated aluminium foil
  • PVC or FRNC jacket material
  • Colour: green (based on RAL 6018)
