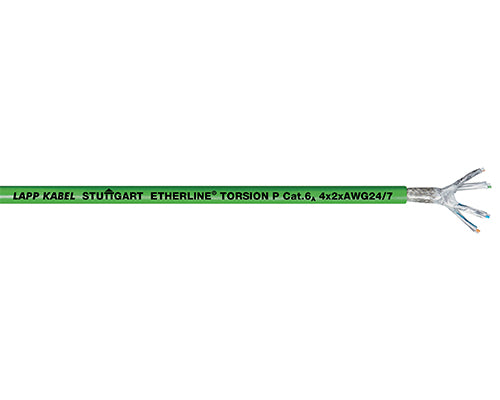

ETHERLINE® TORSION Cat.6A

Highly flexible application

AED 28.85

Available Now!

Highly flexible application

Industrial Ethernet cable Cat.6A for torsion stress applications (± 180°);4 pairs, PVC or PUR jacket with UL approval, design 4x2xAWG24/7, for PROFINET Type C

  • Industrial Ethernet Cable, 4-pair, suitable for torsion stress
  • Cat.6A acc. to ISO/IEC 11801
  • For PROFINET applications

product information (PDF)



Benefits

  • Many applications with Industrial Ethernet, e.g. PROFINET, i.e. fixed installation, flexible use as well as TORSION.
  • 4pair: 100Mbit/s up to 10 Gbit/s for Industrial Ethernet
  • Premium screening against electromagnetic interference
  • Can be used for Industrial Ethernet in harsh industrial environments

Application range

  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • Can be used for Industrial Ethernet in harsh industrial environments
  • suitable for EtherCAT and EtherNet/IP applications

Product features

  • PUR version is halogen-free according to VDE 0472-815
  • Oil-resistant acc. IEC 60811-2-1
  • Cable suitable for high torsion stress. Tested with more than 1 million bending cycles and a right/left movement of 180° per metre.
  • Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173

Norm references / Approvals

  • electrical requirements acc. to IEC 61156-6
  • PUR cable is UL/CSA-certified (CMX)
  • PUR versions: UL AWM Style 21576
  • PVC cable is UL/CSA-certified (CM)
  • Flame retardant acc. to IEC 60332-1-2

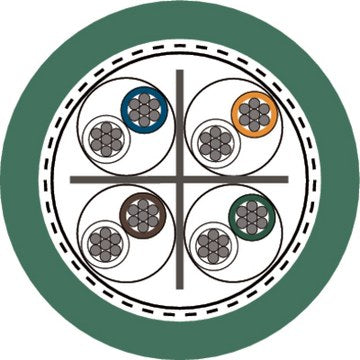

Product Make-up

  • 7-wire tinned stranded copper conductor
  • Core insulation made of polyethylene (PE)
  • S/FTP: copper braid as overall screening and pair screening with aluminium compound foil
  • Outer sheath: PUR/PVC
  • Colour: green (based on RAL 6018)
