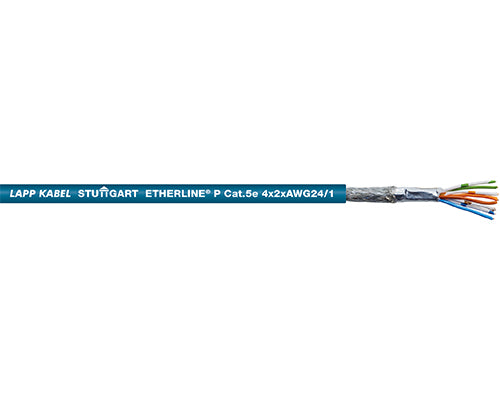

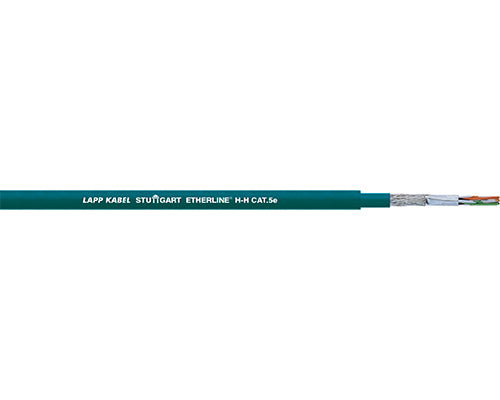

ETHERLINE® Cat.5e

Benefits

• Seamless communication from the sensor/actuator level to the Internet
• Screened against interference
• Can be used in dry or damp rooms
• Can be used for Industrial Ethernet in harsh industrial environments
• cables with PUR jacket: 1000 V UL- rating for installation next to power cables

Application range

• 2pair: 10/100 Mbit/s for Industrial Ethernet
• 4pair: 10/100/1000 Mbit/s for Industrial Ethernet
• suitable for EtherCAT and EtherNet/IP applications
• Industrial use
• Fixed Installation

Product features

• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• PUR outer sheath is highly resistant to mineral oils and abrasion
• Halogen-free outer sheath

Norm references / Approvals

• PUR versions: UL AWM Style 21576
• Flame retardant acc. to IEC 60332-1-2
• Halogenfree cables: halogenfree according to IEC 60754-1, IEC 60754-2
• PUR cables: halogenfree acc. to VDE 0472-815

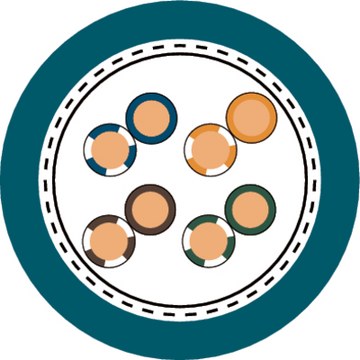

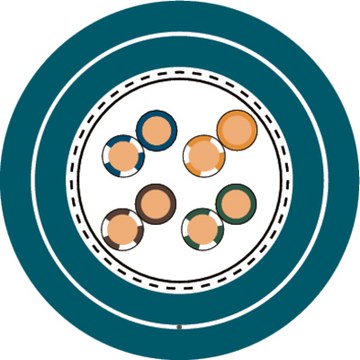

Product Make-up

• Solid conductor
• Core insulation made of foam skin
• 2 or 4-pair version
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Outer sheath as either PUR or LSZH
• Colour: water blue (similar to RAL 5021)
