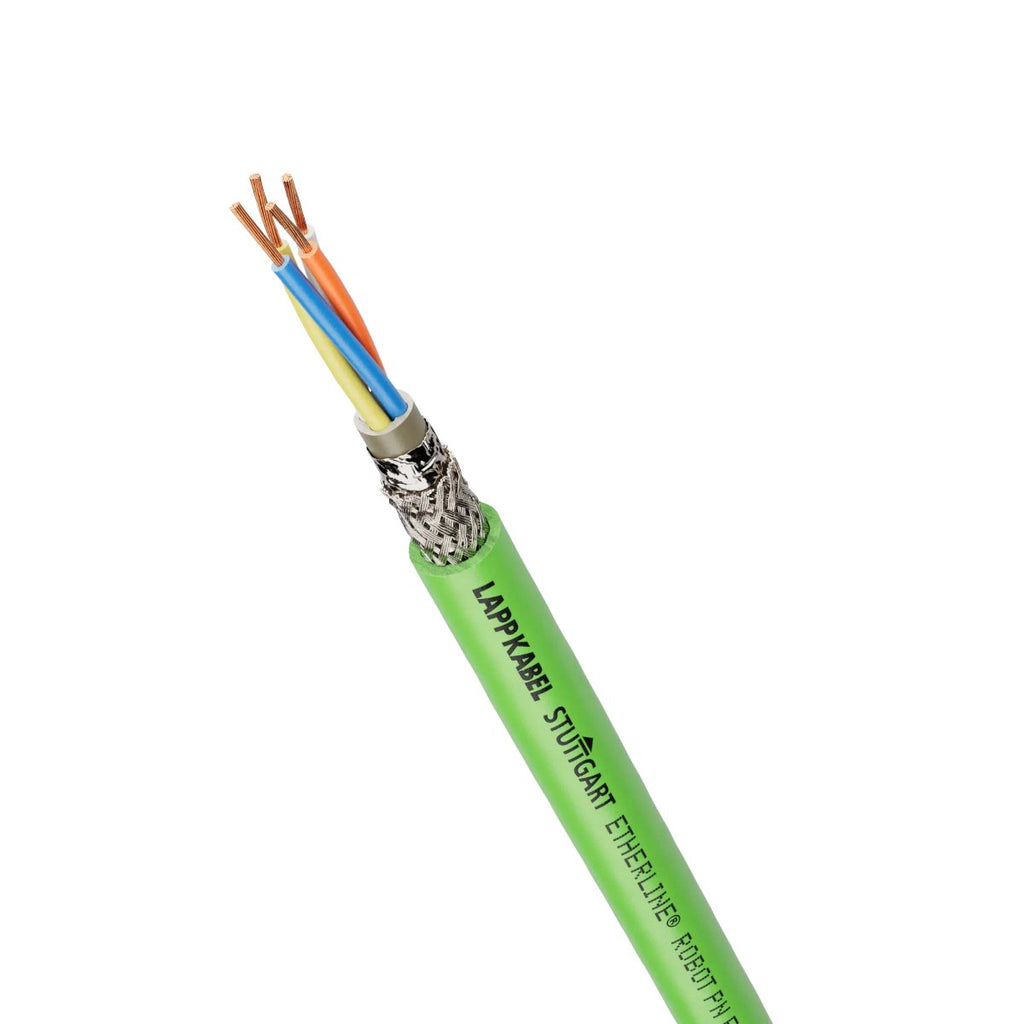

ETHERLINE® ROBOT PN

Benefits

• Can be used for Industrial Ethernet in harsh industrial environments
• EMC-optimised design
• Screened against interference
• 2pair: 10/100 Mbit/s for Industrial Ethernet
• Variant 'FC' with Fast-Connect construction with inner jacket enables effortless stripping and assembly of the cable

Application range

• Especially for highly flexible, continuously moving use with torsional stress in industrial robots and handling devices in the PROFINET network (Type R)
• suitable for EtherCAT and EtherNet/IP applications
• Can be used in dry, humid and oily environments.
• PUR outer sheath withstands high mechanical loads
• The PUR outer sheath is insensitive to mineral oil-based lubricants and is chemically resistant in many cases.

Product features

• Flexibility for use inside power chain/cable carrier
• TORSION: for torsional stress, e.g. robot application; ± 180° per 1 m
• PUR outer sheath is resistant to most oils and hydraulic fluids

Norm references / Approvals

• AWM certification for USA and Canada
• Flame-retardant according to IEC 60332-1-2, UL FT-2 flame test
• Halogen-free according to VDE 0472-815

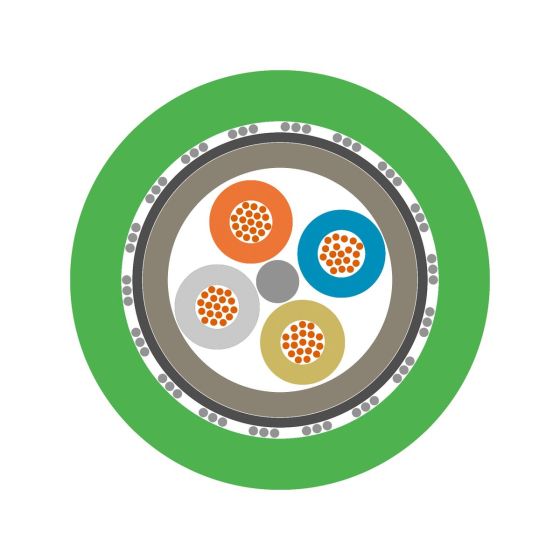

Product Make-up

• Stranded tinned copper, 19-wired
• Core insulation: PE
• Colour-coded in accordance with PROFINET for Cat.5e apllications
• Star quad
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Outer sheath made of PUR
