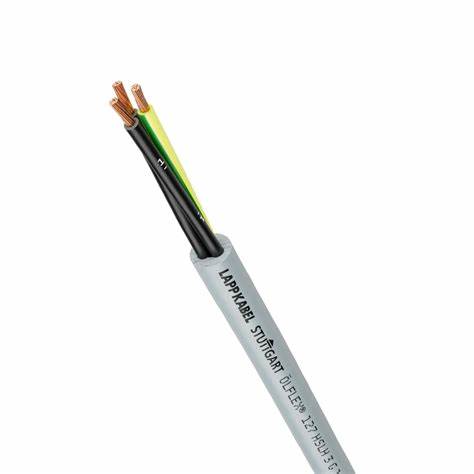

ÖLFLEX® 127 HSLH

ÖLFLEX® 127 HSLH - halogen-free control cable, HFFR, flexible for various applications, U0/U: 300/500V, CPR Cca classified

• Cca classified according to CPR
• For use within public buildings and industrial plants
• CPR: Article number choice under www.lappkabel.com/cpr

• product information (PDF)

Benefits

• Easy handling and installation due to flexible design
• Halogen-free and highly flame-retardant materials reduce the risk of fire propagation, high smoke density and toxic fumes in case of fire
• Classified fire behavior according to EU Directive 305/2011 (CPR) with article number selection under www.lappkabel.com/cpr
• High electrical performance due to 4 kV test voltage

Application range

• Public buildings like airports or railway stations
• Plant engineering, Industrial machinery
  Heating and air-conditioning systems
  Stage applications
• Intended for use under the European Construction Product Regulation (CPR), refer to catalogue appendix T14
• Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards

Product features

• Flame-retardant according to IEC 60332-1-2
  (flame spread on a single cable)
• No flame-propagation according to IEC 60332-3-22 and IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
• Halogen-free according to IEC 60754-1
  (amount of halogen acid gas)
  Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
• Low smoke density according to IEC 61034-2
• Toxicity according to NES 713-3 and EN 50306-1

Norm references / Approvals

• Based on EN 50525-3-11
• Based on EN 50525-2-51

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: Halogen-free
• Cores twisted in layers
• Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
