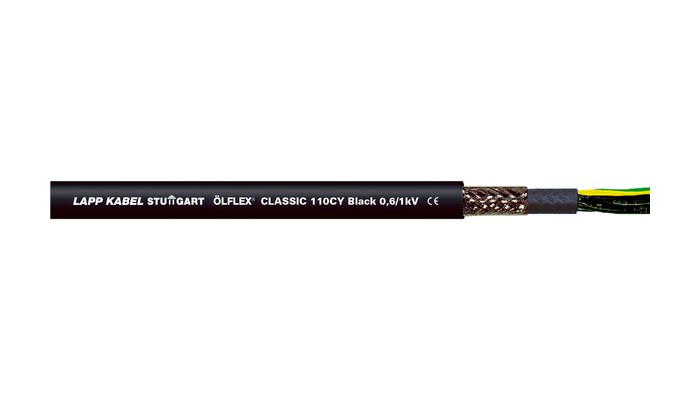

ÖLFLEX® CLASSIC 110 CY BLACK 0,6/1 kV

ÖLFLEX® CLASSIC 110 CY BLACK 0,6/1 kV power and control cable, various applications, PVC, conductor class 5, number coded black cores, screened, outdoor

• Good outdoor performance
• EMC/Screened
• CPR: Article number choice under www.lappkabel.com/cpr

• product information (PDF)

Application range

• Plant engineering
  Industrial machinery
  Heating and air-conditioning systems
  Power stations
• For frequency converter-powered 3-phase AC motors
• In EMC-sensitive environments
  (electromagnetic compatibility)
• Servo Drive Connection Cable
• For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
• Each dimension with nominal/ minimum average wall thickness of the outer sheath of at least 1.8 mm: For applications where a strengthened outer sheath may turn out to be advantageous

Product features

• Flame-retardant according IEC 60332-1-2
• UV and weather-resistant according to ISO 4892-2
• Ozone-resistant according to EN 50396
• High degree of screening
  low transfer impedance
  (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

• Based on VDE 0250-1 and HD 627-1 S1


Product Make-up

• Fine-wire strand made of bare copper wires
• PVC insulation LAPP P8/1
• PVC inner sheath, black
• Tinned-copper braiding
• PVC outer sheath, black (RAL 9005)
