Screened halogen-free control cable, oil resistant, very flexible and space-saving

AED 10.97

Available Now!

Screened halogen-free control cable, oil resistant, very flexible and space-saving

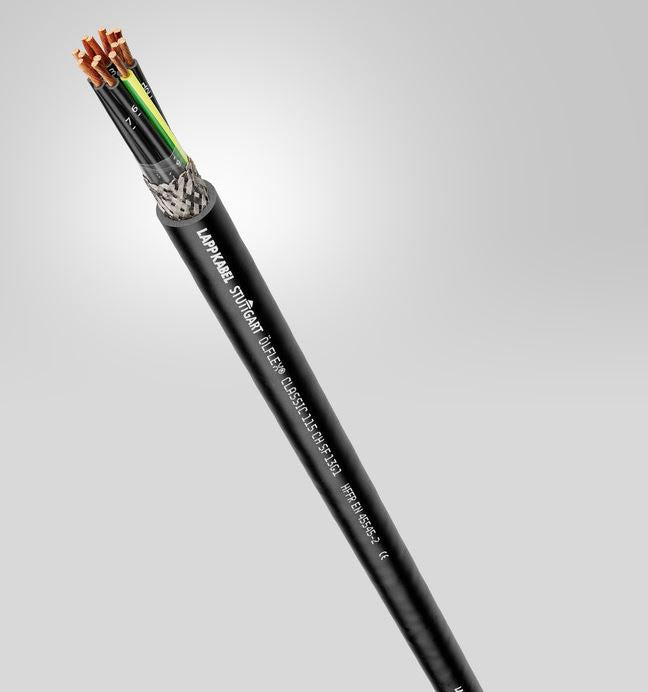

ÖLFLEX® CLASSIC 115 CH - halogen-free control cable, HFFR, oil-resistant, screened, cold-resistant and space-saving for various applications, U0/U: 300/500V

  • CPR: Article number choice under www.lappkabel.com/cpr
  • High flexibility and oil-resistance
  • Thin and light, without inner sheath


  • Easy handling and installation due to very flexible cable type
  • Wide application range due to excellent product features
  • Halogen-free and highly flame-retardant materials reduce the risk of fire propagation, high smoke density and toxic fumes in case of fire
  • Copper shielding protects against electromagnetic interference

Application range

  • Public buildings like airports or railway stations
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
  • Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
  • Intended for use under the European Construction Product Regulation (CPR), refer to catalogue appendix T14
  • Considering the temperature range, a temporary outdoor use is possible

Product features

  • Flame-retardant according to IEC 60332-1-2
    (flame spread on a single cable)
  • No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
  • UL Cable Flame Test
  • Halogen-free according to IEC 60754-1
    (amount of halogen acid gas)
    Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
  • Low smoke density according to IEC 61034-2
  • Oil-resistant according to EN 50363-4-1 (TM5)
    and UL OIL RES I and UL OIL RES II
  • UV and weather-resistant according to ISO 4892-2
  • Ozone-resistant according to EN 50396

Norm references / Approvals

  • UL AWM style 21089
  • Based on EN 50525-3-11
  • Based on EN 50525-2-51

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Core insulation: Halogen-free
  • Cores twisted in layers
  • Wrapping: Halogen-free plastic foil
  • Tinned-copper braiding
  • Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
