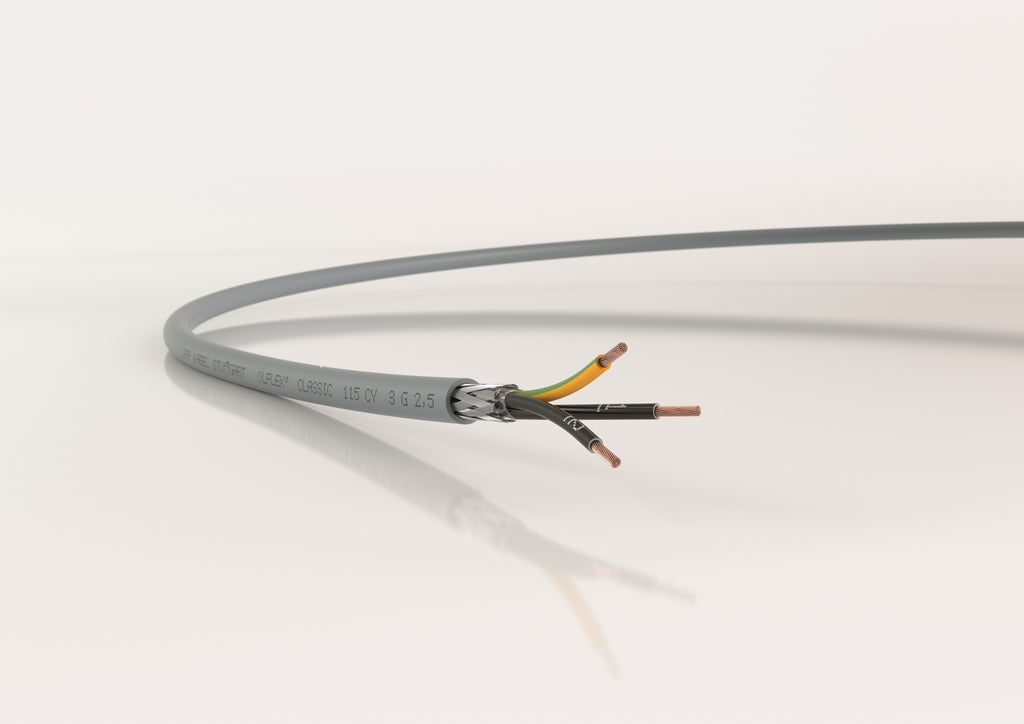

ÖLFLEX® CLASSIC 115 CY

Colour-coded PVC control cable

AED 6.02

Available Now!

Screened PVC control cable with small outer diameter

ÖLFLEX® CLASSIC 115 CY - PVC control cable, screened and flexible for various applications, thin and light without inner sheath, U0/U: 300/500V

  • CPR: Article number choice under www.lappkabel.com/cpr
  • Thin and light, without inner sheath
  • EMC-compliant

product information (PDF)

Benefits

  • Space-saving installation due to small cable diameters

Application range

  • Measurement and control technology
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
  • Office machines and systems for data processing
  • In EMC-sensitive environments
    (electromagnetic compatibility)
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Product features

  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • High degree of screening
    low transfer impedance
    (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

  • Based on EN 50525-2-51

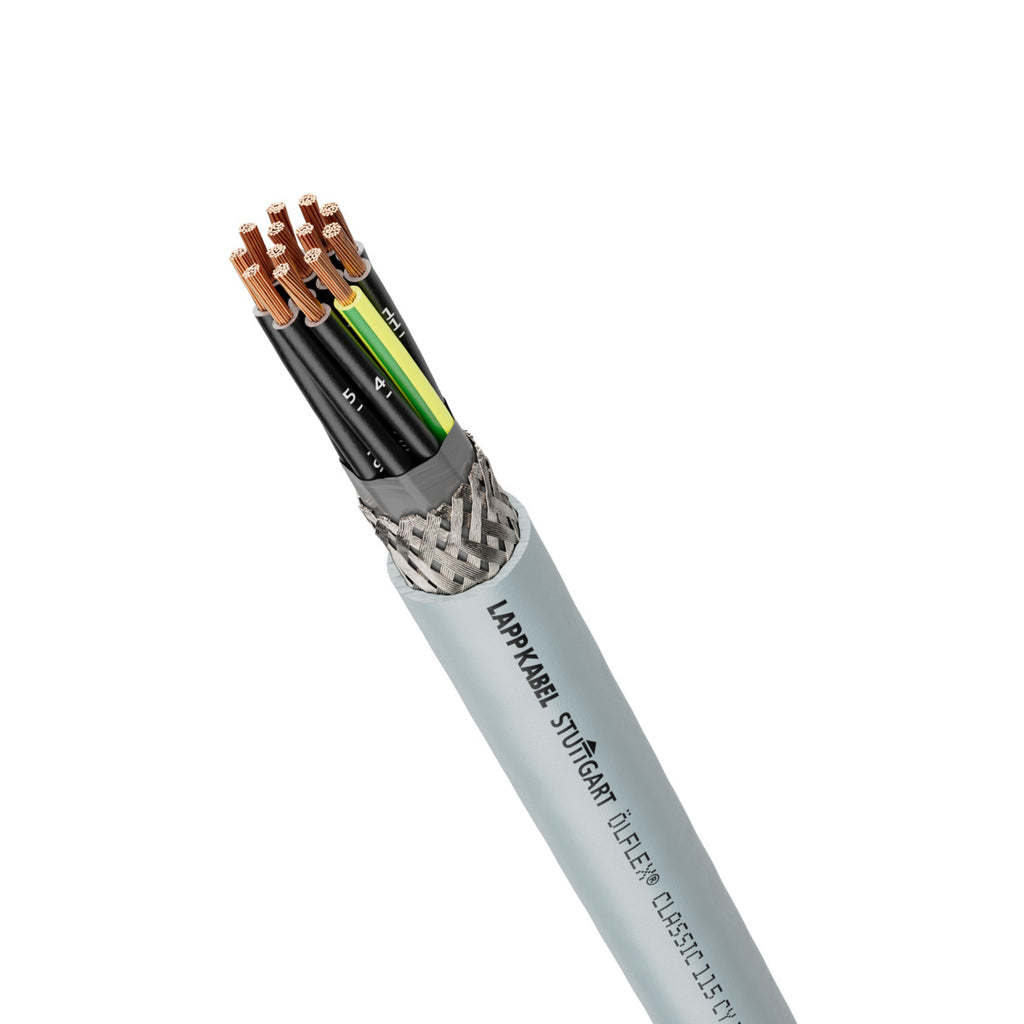

Product Make-up

  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • Plastic foil wrapping
  • Tinned-copper braiding
  • PVC outer sheath, grey (similar RAL 7001)
