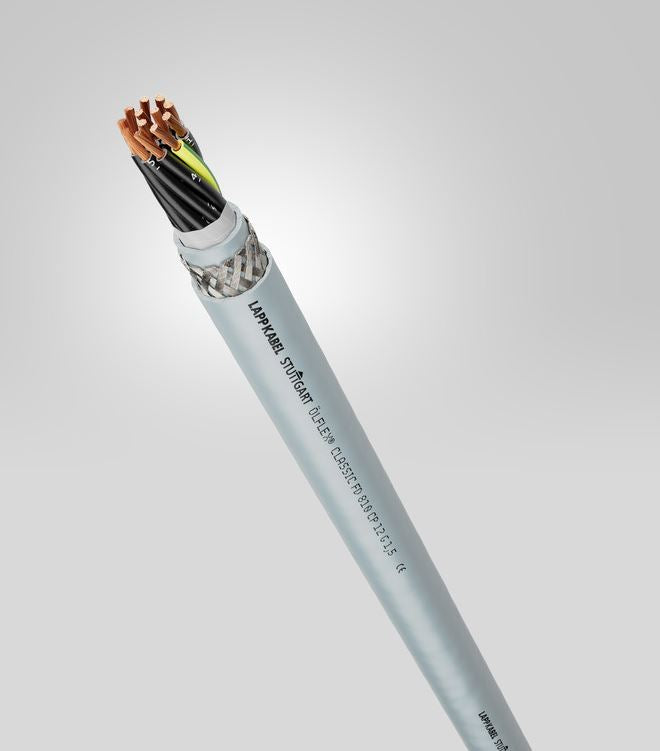

ÖLFLEX® CLASSIC FD 810 CP

Highly flexible, screened control cable with PVC insulation, inner sheath and abrasion and oil resistant PUR jacket

AED 17.96

Available Now!

Highly flexible, screened control cable with PVC insulation, inner sheath and abrasion and oil resistant PUR jacket

ÖLFLEX® CLASSIC FD 810 CP - Screened power and control cable for versatile use in power chains in hash environmental conditions

  • Core Line Performance - Medium to increased travel lengths or acceleration
  • Oil resistant and abrasion-proof
  • EMC compliant copper screening

Benefits

  • Well-proven and reliable
  • Various applications
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Additional robustness thanks to inner sheath
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • In power chains or moving machine parts
  • Particularly in wet areas of machine tools and transfer lines
  • Power circuits for electrical equipments used in automation engineering
  • Suitable for use in measuring, control and regulating circuits
  • In dry, damp or wet interiors with normal mechanical stress conditions

Product features

  • Flame-retardant according to IEC 60332.1.2
  • High oil-resistance
  • Abrasion and notch-resistant
  • EMC-compliant
  • Low-adhesive surface

Norm references / Approvals

  • Core and outer sheath based on VDE 0245/0285
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Extra-fine wire strand made of bare copper wires (class 6)
  • Core insulation: PVC
  • Cores twisted in short lay lengths
  • Non-woven wrapping
  • PVC inner sheath
  • Tinned-copper braiding
  • PUR outer sheath, grey (similar RAL 7001)
