ÖLFLEX® EB CY

Control cable for intrinsically safe circuits according to IEC 60079-14 / EN 60079-14 / VDE 0165-1

AED 6.67

Available Now!

Control cable for intrinsically safe circuits according to IEC 60079-14 / EN 60079-14 / VDE 0165-1

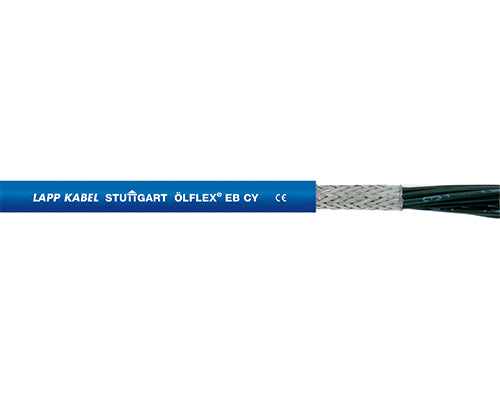

ÖLFLEX® EB CY - PVC control cable, flexible, screened and numbered, with blue outer sheath for intrinsically-safe circuits, U0/U: 300/500V

  • CPR: Article number choice under www.lappkabel.com/cpr
  • For use within intrinsically safe circuits - type of protection 'i'
  • UV and weather-resistant according to ISO 4892-2

product information (PDF)

Benefits

  • Space-saving installation due to small cable diameters
  • Copper wire braid screening of the ÖLFLEX® EB CY protects signal transmission within intrinsically safe circuits against electromagnetic interference
  • Suitable for outdoor applications

Application range

  • For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
  • In EMC-sensitive environments
    (electromagnetic compatibility)

Product features

  • Flame-retardant according IEC 60332-1-2
  • High degree of screening
    low transfer impedance
    (max. 250 Ω/km at 30 MHz)
  • UV and weather-resistant according to ISO 4892-2

Norm references / Approvals

  • Based on EN 50525-2-51

Product Make-up

  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • Plastic foil wrapping
  • Tinned-copper braiding
  • Outer sheath: PVC, sky blue similar to RAL 5015
