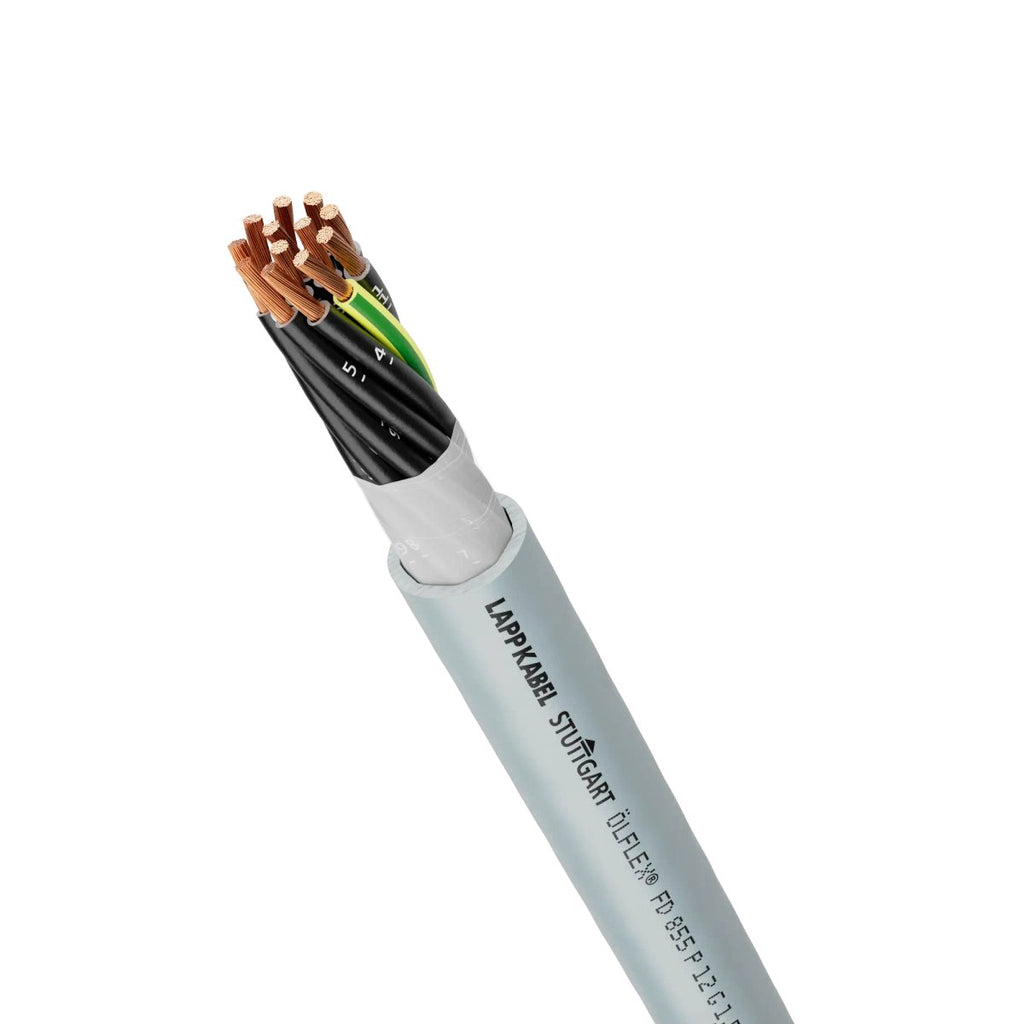

ÖLFLEX® FD 855 P

Halogen-free, highly flexible control cable with abrasion and oil resistant PUR sheath - certified

AED 9.17

Available Now!

Halogen-free, highly flexible control cable with abrasion and oil resistant PUR sheath - certified

ÖLFLEX® FD 855 P - Halogen-free power and control cable for power chain use in harsh conditions with UL/cUL AWM certification

  • Extended Line Performance - Long travel lengths or high acceleration
  • All-rounder with small bending radii
  • UL/cUL certified for North America

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Multi-standard certification reduces part varieties and saves costs
  • Low particle emission at moved chain application
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide temperature range for applications in harsh climatic environments

Application range

  • In power chains or moving machine parts
  • Particularly in wet areas of machine tools and transfer lines
  • Assembly lines, production lines, in all kinds of machines
  • For use in assembling & pick-and-place machinery
  • For highly dynamic applications
  • For indoor and outdoor use

Product features

  • Halogen-free and flame-retardant
    (IEC 60332-1-2)
  • Resistant to oil and drilling fluids according to IEC 61892-4, Appendix D
  • Flexible down to -40°C
  • Abrasion and notch-resistant
  • Low-adhesive surface

Norm references / Approvals

  • Based on VDE 0250 / 0285
  • USA: UL AWM Style 21576
    Canada: cUL AWM Style I/II A FT2
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Extra-fine wire strand made of bare copper wires (class 6)
  • Core insulation: TPE
  • Cores twisted together in extremely short lay lengths
  • Non-woven wrapping
  • PUR outer sheath, grey (similar RAL 7001)
