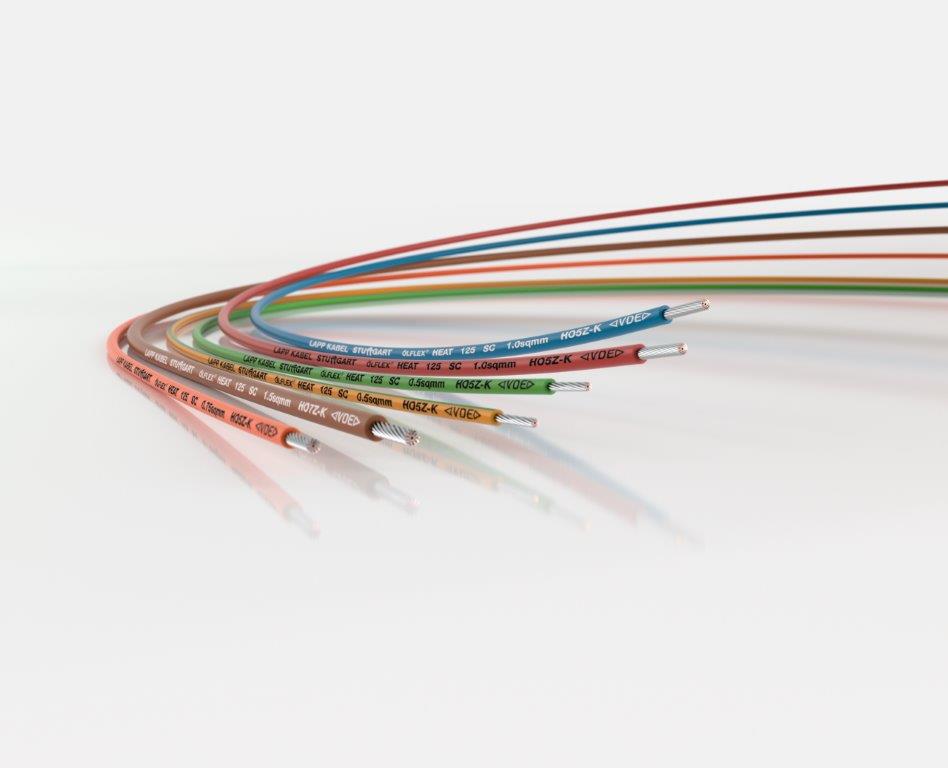

ÖLFLEX® HEAT 125 SC

VDE tested single cores according to EN 50525-3-41 (H05Z-K & H07Z-K) for more demanding requirements

AED 2.09

Available Now!

VDE tested single cores according to EN 50525-3-41 (H05Z-K & H07Z-K) for more demanding requirements

ÖLFLEX® HEAT 125 SC - halogen free single core with GL certificate, special fire performance, IEC 60332-3, suitable for +125°C

  • CPR: Article number choice under www.lappkabel.com/cpr
  • VDE-tested and -marked
  • Improved characteristics in the event of a fire

Benefits

  • For safety in areas with high density of people
  • Reduction of flame propagation, density and toxicity of smoke gases in event of fire
  • Minimises damage to buildings and equipment caused by the formation of toxic acid fumes in fires
  • Certified for maritime applications

Application range

  • For the wiring and connection of lighting, heating appliances, control cabinets, and distributors in mechanical and plant engineering
  • For installation in tubes, on, in and under plaster as well as in closed installation ducts
  • Coil winding, electromagnets, pumps, electrical systems
  • Heat treatment plants, pressure die casting, heating and cooling technology
  • Suitable for assembling cable harnesses and wiring during switch cabinet installation

Product features

  • Fire behaviour:
    - Flame-retardant (IEC 60332-1-2)
    - Halogen-free (IEC 60754-1)
    - No corrosive gases (IEC 60754-2)
    - Low smoke density (IEC 61034-2)
    - Low toxicity (EN 50305)
  • Extended fire behaviour:
    H05Z-K (0,5mm² up to 1,0mm²):
    see data sheet
    H07Z-K (≥ 1,5mm²):
    no fire propagation according to IEC 60332-3-24 respectively IEC 60332-3-25
  • Oil-resistant according to DIN EN 50290-2-22 (TM54)
  • Abrasion and notch-resistant
  • UV-resistant according to ISO 4892-2, method A, and ozone resistant acc. to EN 50396 resp. VDE 0473-396, method B
