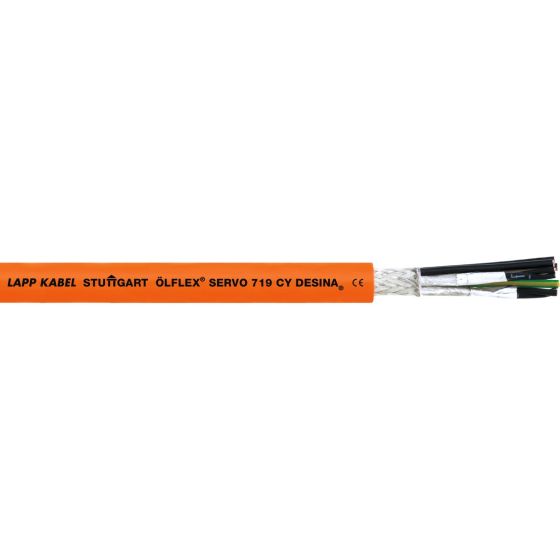

ÖLFLEX® SERVO 719 CY

Screened, low capacitive servo cable with PVC outer sheath for static use - certified for North America

AED 28.79

Available Now!

Screened, low capacitive servo cable with PVC outer sheath for static use - certified for North America

ÖLFLEX® SERVO 719 CY - Screened, low capacitive servo cable for fixed installation or occasional flexing with UL/cUL AWM certification.

  • Successor of ÖLFLEX® SERVO 700 CY and ÖLFLEX® SERVO 709 CY
  • Low-capacitance design
  • Product range extension

Benefits

  • Suitable for use with servomotor product lines from leading drive manufacturers
  • Longer cable installation lengths thanks to low mutual capacitance cable design
  • Multi-standard certification reduces part varieties and saves costs.
  • Space and weight-saving installations due to small cable diameters
  • Copper braiding screens the cable against
    electromagnetic interference

Application range

  • Connecting cable between servo controller and motor
  • For static and occasionally flexible use
  • Plant engineering.
  • Industrial machinery and machine tools
  • Printing machines

Product features

  • Low capacitance
  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Oil-resistant.
  • EMC-compliant

Norm references / Approvals

  • USA: UL AWM Style 2570
    Canada: cUL AWM Style I/II A/B FT1
  • UL File No. E63634

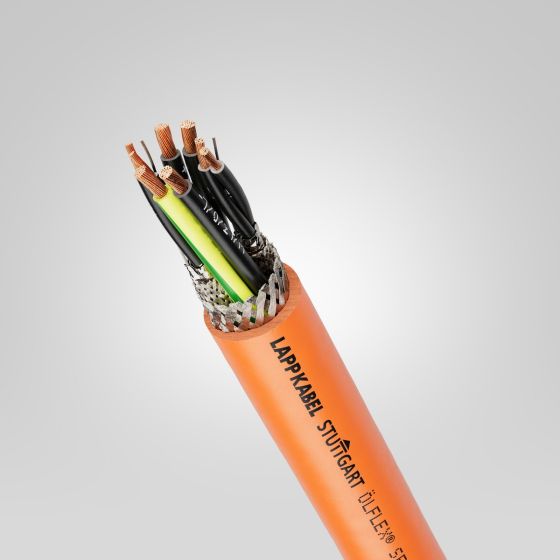

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: polypropylene (PP)
  • Individual design depending on the item:
    Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths.
    Power cores with control core triplet twisted together in short lay lengths.
  • Tinned copper screen braiding
  • PVC outer sheath, orange (RAL 2003)
