Control and signal cables with small cross sections - UL/CSA listed

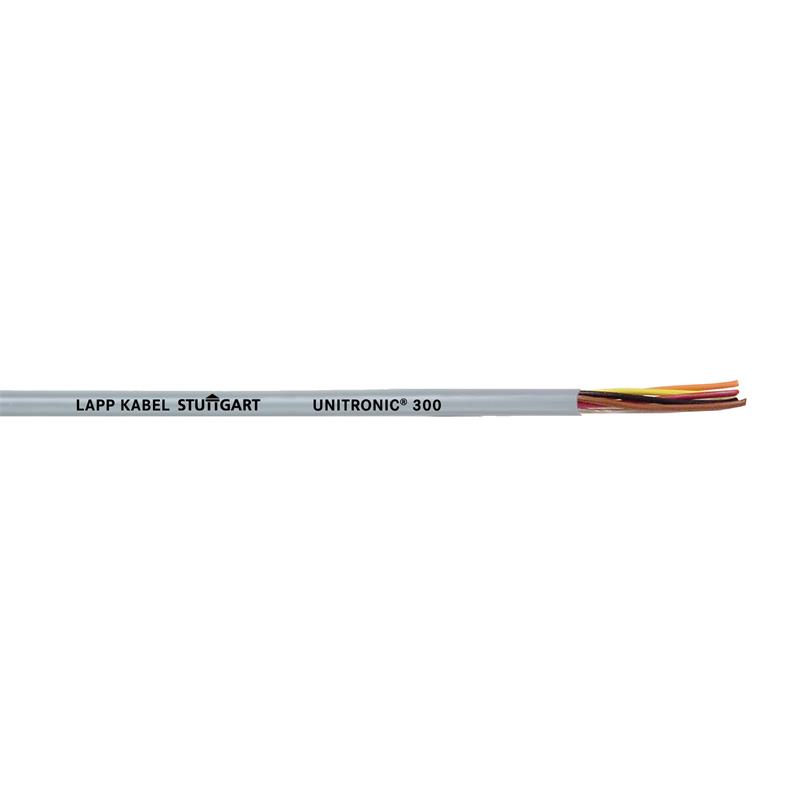

UNITRONIC® 300/300 S: unscreened or screened Low-frequency PVC data cable, UL/CSA AWM, CMG, Further Tray Cable listings for Cable tray installation, -25°C/105°C

  • Designation of shielded version:
    Formerly "UNITRONIC® 300 CY",
    now "UNITRONIC® 300 S"
  • Other sizes on request
  • Especially for 20 AWG and 18 AWG: With standard core color code, up to 60 conductors producible/ With non-standard color code, e.g., green-yellow grounding conductor, up to 100 cores
  • Benefits

    • Wide application range due to multiple certifications
    • Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)

    Application range

    • Control and signal cables for internal and external wiring
    • For the North American market
    • On the basis of CMG, PLTC or ITC direct laying on cable tray in the USA, in conjunction with -ER (Exposed Run) for unprotected transition sections with a length of not more than 6 ft. each
    • Thanks to the DIRECT BURIAL approval, direct burial of versions with the nominal conductor cross sections 18 AWG and 16 AWG is normatively permitted in the USA
    • Torsion resistant up to ±150 °/m for the drip loop of wind turbine generators

    Product features

    • Oil-resistant according to UL OIL RES I
    • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • Norm references / Approvals

    • USA: (UL) CMG [E130334], (UL) PLTC-ER (18 AWG + 16 AWG) [E216027], (UL) PLTC (>24 AWG) [E216027], (UL) ITC-ER (18 AWG + 16 AWG) [E196134], UL AWM Style 2464 [E100338], DIR BUR (18 AWG + 16 AWG)
    • CAN: c(UL) CMG FT4 [E130334], CSA AWM I/II A/B FT1

    Product Make-up

    • Fine-wire strand made of tinned-copper wires
    • Core insulation made of PVC compound

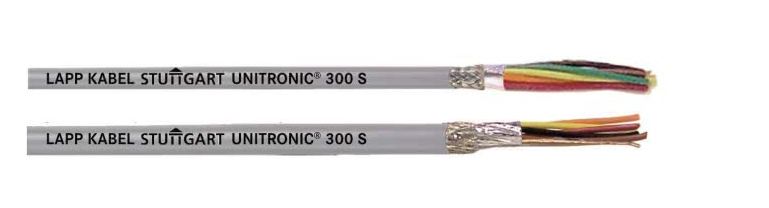

    • UNITRONIC® 300 S: with overall foil tape wrapping, drain wire,
      tin-plated copper braiding (75 % coverage)
    • Outer jacket: Specially Formulated PVC
    • Color of the outer jacket: Dark gray (similar to RAL 7005)
