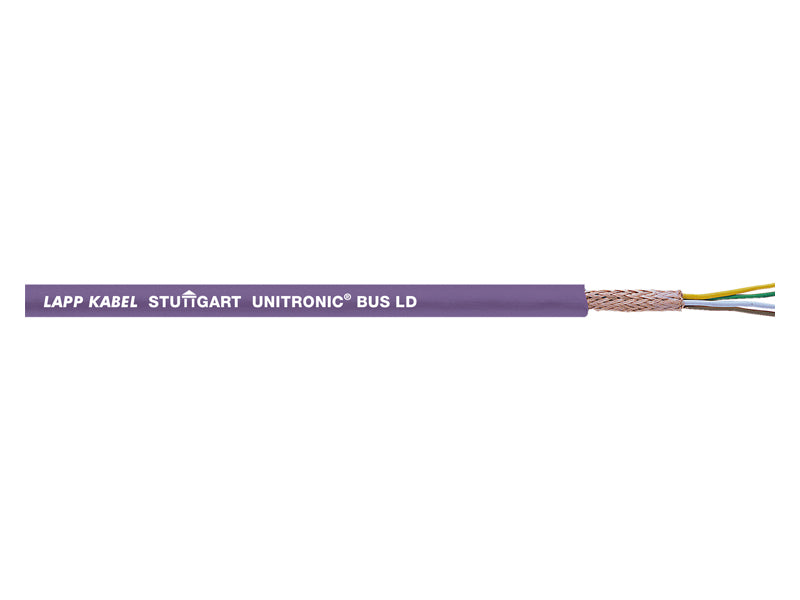

UNITRONIC® BUS LD

Flexible buscable with PVC outer sheath, for use in different bussystems

AED 5.58

Available Now!

Flexible buscable with PVC outer sheath, for use in different bussystems

For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet. Flame retardant, UL- approval, Core indet. code DIN 47100. Temperature ranges from -40°C bis +80°C

LD is a LAPP abbreviation for long distance.

Benefits

  • Suitable for multiple Bus systems based on RS485 / RS422

Application range

  • For fixed installation
    Maximum electromagnetic screening
  • Bus cables for bus systems such as e.g. Modbus, SUCOnet P, Modulink P, VariNet-P)
  • Dry or damp rooms

Product features

  • The stated bit rates result in the following cable lengths (maximum) of one bus segment:
  • 9.6-93.75 kbit/s = 1200m
  • 187.5 kbit/s = max. 1,000 m
  • 500 kbit/s = max. 400 m
  • Norm references / Approvals

    • UNITRONIC® BUS LD A:
      UL versions with certification:
      UL/CSA type CMX acc. to UL 444
      and CSA C22.2 no. 214-02
    • Flame retardant acc. to IEC 60332-1-2
  • Product Make-up

  • Stranded conductor, bare, 7-wire
  • Core insulation: PE
  • Colour code DIN 47100
  • Overall screening of braided tinned-copper strands
  • Outer sheath: PVC, violet (RAL 4001)
