UNITRONIC® BUS EIB / KNX

Use in building automation for control of lighting, heating, air-conditioning, time management, etc. temperature range from -30°C bis +70°C

• EIB / European Installation Bus
• KNX/communication in building management
• CPR: Article number choice under www.lappkabel.com/cpr

product information (PDF)

Application range

• The product is designed for use in building management, e.g. for decentralised control of lighting, heating, air-conditioning, ventilation, energy management, blinds, time management, locking systems etc.
• The cable can be laid on or under plaster; in pipes, cable ducts; in dry, damp or wet environments.
• EIB installation mainly consists of sensors/command-transmitters (e.g. light barriers, switches, thermostats, infrared, wind meters, timers), and actuators (e.g. engines, heaters, ventilators, lights, blinds).
• KNX technology was formed from the merging of three established European bus standards: EIP, EHS (household appliances and consumer electronics) and Batibus (heating/ventilation/air conditioning)

Product features

• Serial data transmission
• EIB cable has been tested at 4 kV (1 min.) in a water bath

Product Make-up

• Screened installation cable based on type J-Y(ST)Y according to DIN VDE 0815

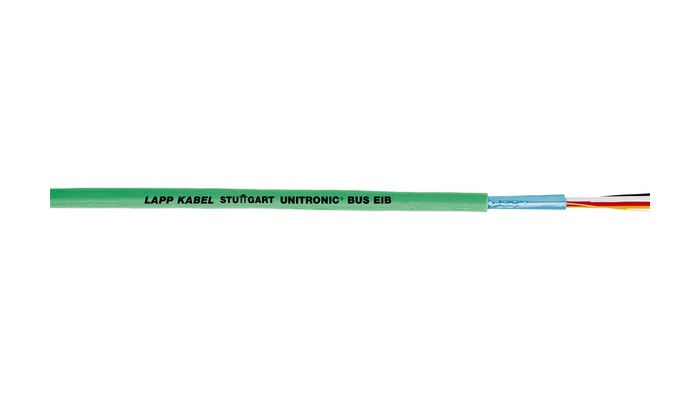

• UNITRONIC® BUS EIB
  Bare solid copper wire
  2x2x0,8: red and black, white and yellow
  Core insulation: PVC
  Overall aluminum foil
  Outer sheath: PVC, green (RAL 6017)
• UNITRONIC® BUS EIBCOMBI
  Bare solid copper wire
  Core insulation: PVC
  2x2x0,8: red und black, white and yellow
  3x1,5: brown, blue, green/yellow
  Overall aluminum foil
  Outer sheath: PVC, green (RAL 6017)
