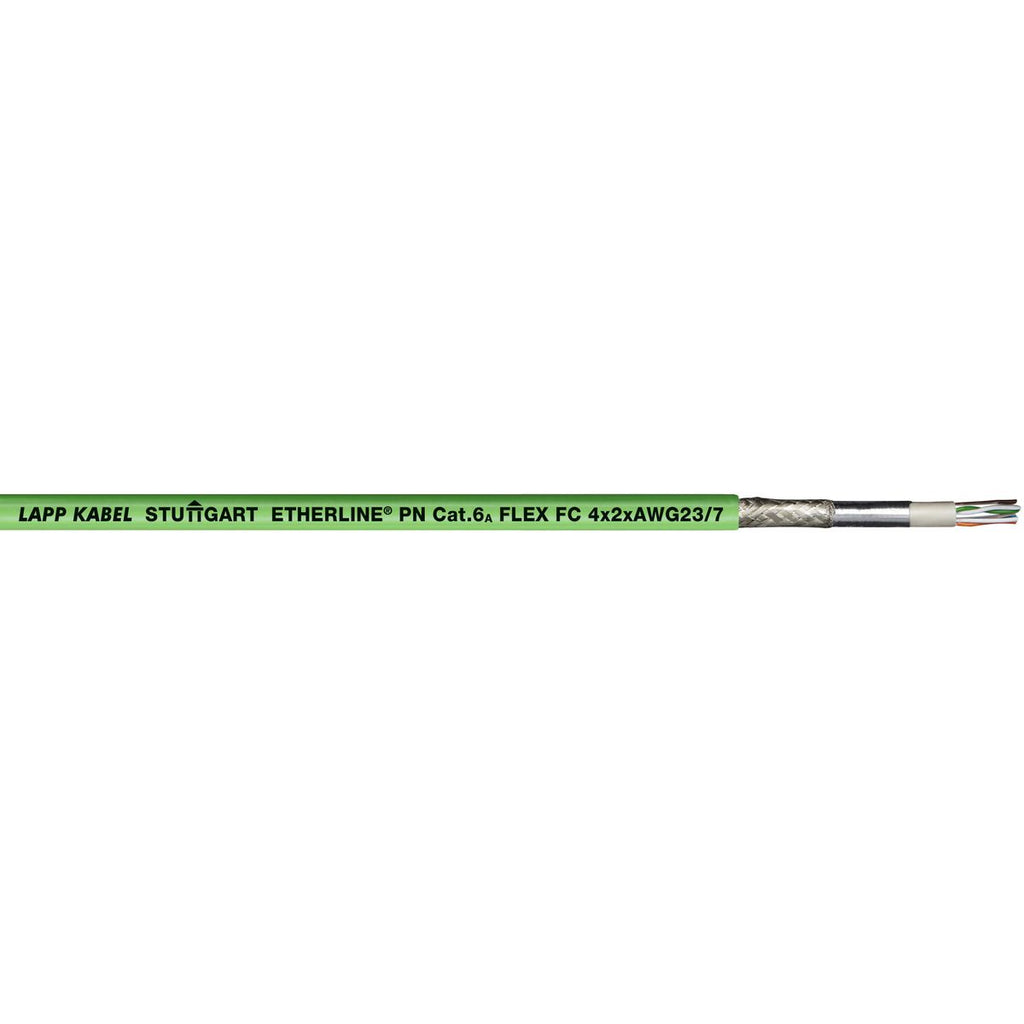

ETHERLINE® Cat.6A FLEX FC

Benefits

• The Fast Connect construction including inner sheath and separating cross significantly reduces the cable's assembly time, as the time-consuming removal of the pair shielding is no longer necessary. In addition, it offers undiminished shielding of the wire pairs from each other.
• Additional protection against electromagnetic interference through double overall shielding made of aluminium-laminated foil and copper shielding braid with a high degree of coverage (SF/UTP).
• UL certification according to technical data enables the use of the product in the North American region.
• For transmission of analogue and digital signals in the frequency range up to 500 MHz.
• Available with rugged PVC outer jacket or halogen-free FRNC outer jacket.

Application range

• Also suitable for EtherCAT and EtherNET/IP applications.
• Variant FLEX with reduced conductor cross-section is suitable for applications with limited space.
• For flexible use.
• Usable in dry, damp and wet environments.
• Usable in a variety of ways depending on the sheath material.

Norm references / Approvals

• AWM certification for USA and Canada
• Flame-retardant according to IEC 60332-1-2, UL FT-2 flame test
• UV-resistant UL SUN RES

Product Make-up

• 7-wire tinned stranded copper conductor
• Core insulation: PE
• Inner sheath: halogen-free compound
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• PVC or FRNC jacket material
• Colour: green (based on RAL 6018)
