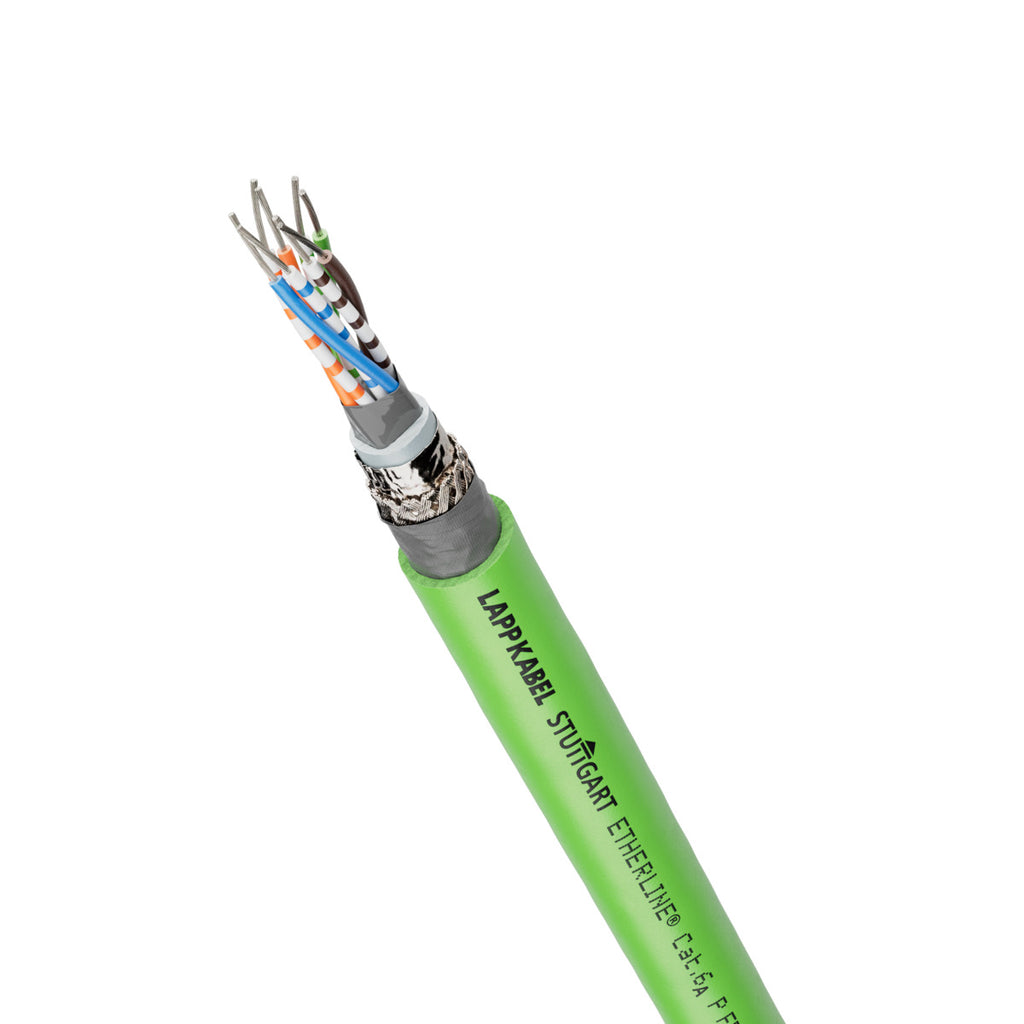

ETHERLINE® Cat.6A FD FC

Benefits

• The Fast Connect construction including inner sheath and separating cross significantly reduces the cable's assembly time, as the time-consuming removal of the pair shielding is no longer necessary. In addition, it offers undiminished shielding of the wire pairs from each other.
• Additional protection against electromagnetic interference through double overall shielding made of aluminium-laminated foil and copper shielding braid with a high degree of coverage (SF/UTP).
• UL certification according to technical data enables the use of the product in the North American region.
• Available with robust PVC outer sheath or abrasion-resistant PUR outer sheath.
• For transmission of analogue and digital signals in the frequency range up to 500 MHz.

Application range

• Cable design allows highly flexible, continuously moving use in moving machine parts and in the drag chain.
• Successfully tested for over 1 million bending cycles in the drag chain.
• Usable in dry, damp and wet environments.
• Usable in a variety of ways depending on the sheath material.

Product features

• CAT.6_A for flexible application, qualified for 10Gbit/s
• Meets the requirements according to CAT.6A, ISO/IEC 11801 and EN 50173
• High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
• The oil-resistant PVC sheath enables usage in industrial environments

Norm references / Approvals

• AWM certification for USA and Canada

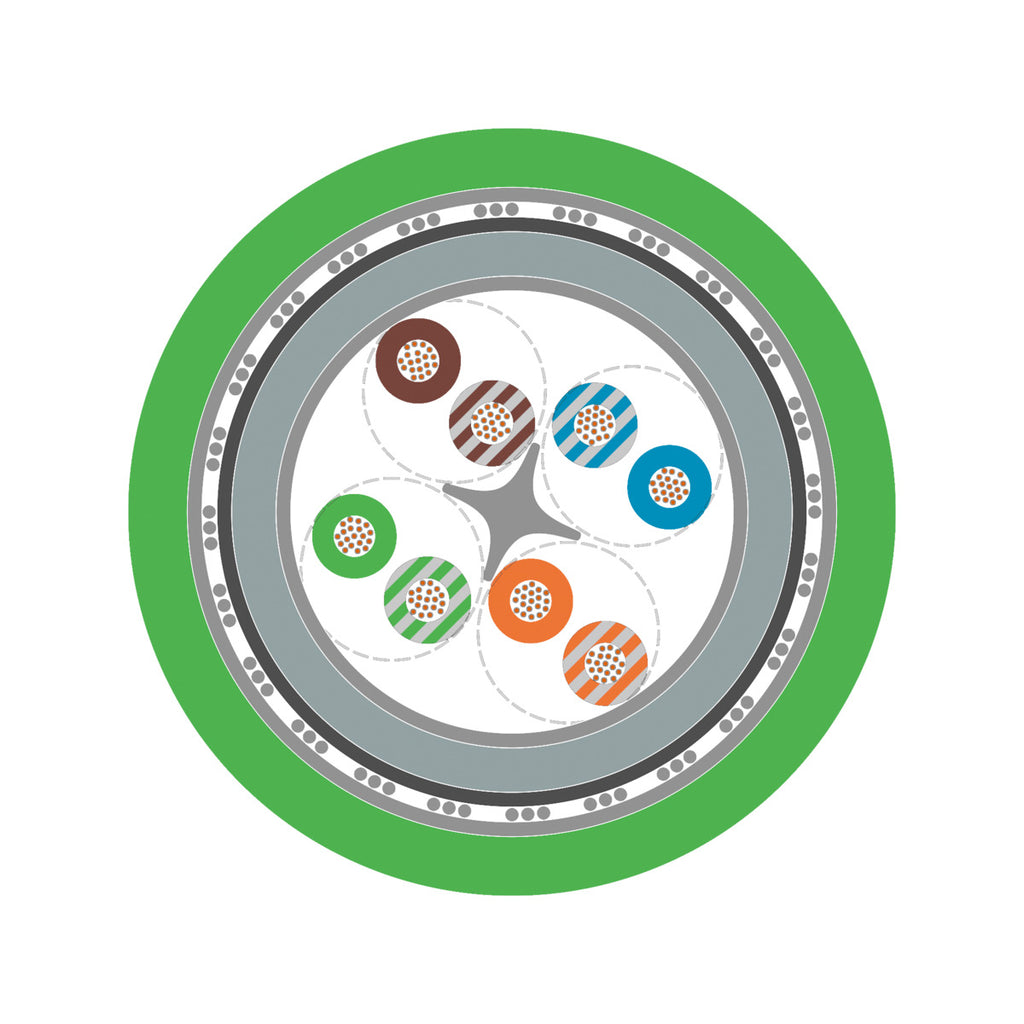

Product Make-up

• 7-wire tinned stranded copper conductor
• Core insulation: PE
• Inner sheath: halogen-free compound
• SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
• Outer sheath material PUR or PVC (see article description)
• Colour: green (based on RAL 6018)
