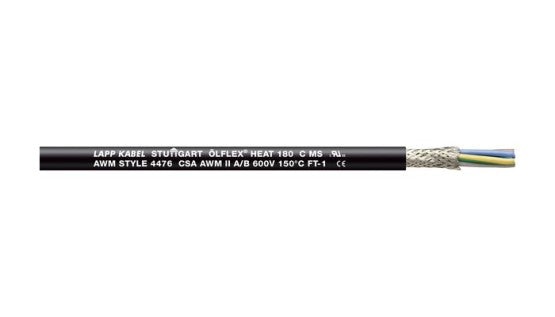

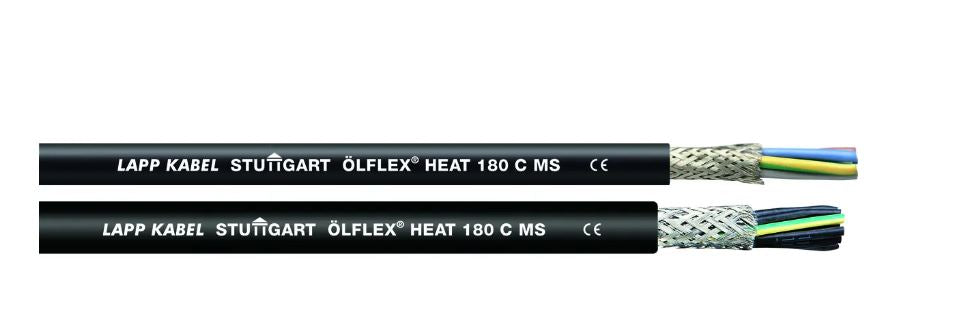

ÖLFLEX® HEAT 180 C MS

Screened and approved silicone cables for North America (AWM recognized)

ÖLFLEX® HEAT 180 C MS - shielded silcione power and control cable, UL/cUL-AWM approved for machine and plant construstion in North America, suitable for +180°C

• MS = Multi-Standard
  For use in the USA and Canada
• UL AWM Style 4476 (150 °C/600 V)
• CPR: Article number choice under www.lappkabel.com/cpr

• product information (PDF)

Benefits

• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers
• Thicker cable design meets the requirements of the FT-1 flame test and also approved for the external interconnection of apparatuses and appliances
• Flexibility simplifies installation where space is limited
• Copper braiding screens the cable against
  electromagnetic interference

Application range

• Areas with high ambient temperatures where insulating and sheath materials of conventional cables will embrittle after a short while
• Typical fields of application
  - Steel, ceramic and iron works
  - Bakery equipment and industrial furnaces
  - Electric motor industry
  - Sauna/solarium construction
  - Thermal and heating elements
  - Lighting technology
  - Ventilator engineering
  - Air-conditioning technology
  - Galvanisation technology

Product features

• Halogen-free (IEC 60754-1), no corrosive gases (IEC 60754-2)
• Flame-retardant acc. to IEC 60332-1-2, Cable Flame Test, CSA FT 1
• Good hydrolysis and UV-resistance
• Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
• Adequate ventilation must be ensured, since the mechanical properties of silicone cables decrease from +100°C in the absence of air

Norm references / Approvals

• UL AWM 4476 and cUL AWM II A/B
  Construction B, External wiring
• UL File No. E63634

Product Make-up

• Fine-wire, tinned-copper conductor
• Silicone-based core insulation
• Cores twisted together
• Tinned-copper screen braiding,
  interleaved plastic foil wrapping
• Silicone-based outer sheath,
  colour black
