EMC-optimised motor cable, low-capacitance, double screened

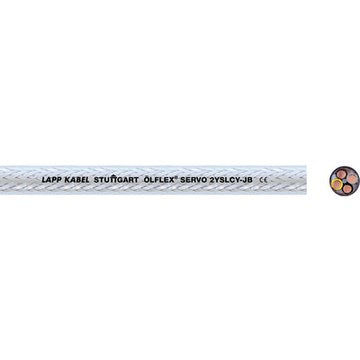

ÖLFLEX® SERVO 2YSLCY-JB - Motor cable for drives with high electrical power, EMI optimized and double screened.

  • EMC-optimised design
  • 3+3 symmetry reduces common-mode interference effects and bearing currents
  • CPR: Article number choice under www.lappkabel.com/cpr

product information (PDF)


  • EMC-compliant installation of power drive systems conforming to EN 61800-3
  • High power transmission for large drives
  • Low capacitance design enables longer cable connection between frequency converter and motor
  • Symmetrical 3+3 Version supports the reduction of damaging bearing currents
  • Versions with black outer sheath are suitable for outdoor use

Application range

  • Connecting cable between frequency converter and motor
  • In dry, damp or wet interiors
  • Paper industry
  • Chemical industry
  • Heavy industry

Product features

  • Flame-retardant according IEC 60332-1-2

Norm references / Approvals

  • Based on VDE 0207 / 0250 / 0295

Product Make-up

  • Fine-wire, bare copper conductor
  • Core insulation: PE
  • Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
  • Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding

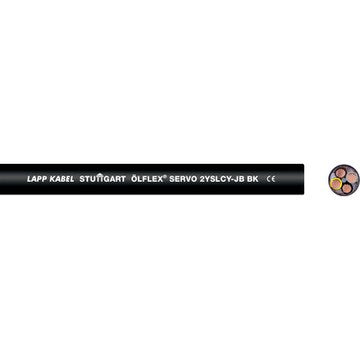

  • 4-core version: optional transparent or black PVC outer sheath

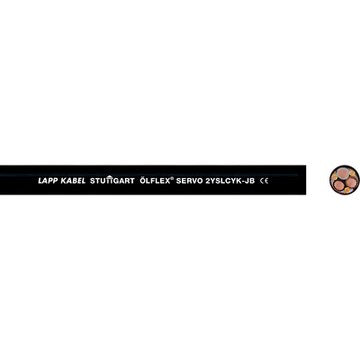

  • 3+3 core version: PVC outer sheath, black - cold flexible
