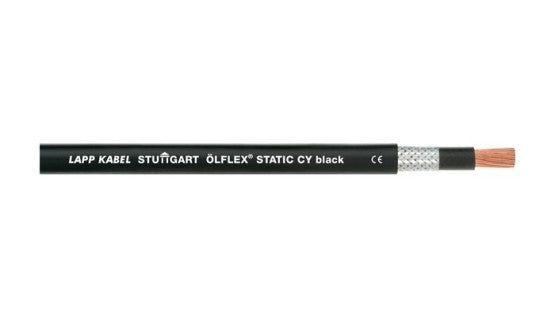

ÖLFLEX® STATIC CY black

Closely screened, doubly insulated PVC single core for fixed installation

ÖLFLEX® STATIC CY BLACK - Screened, doubly insulated PVC single core with 0,6/1kV for vaious applications in EMC-sensitive environments

• An alternative to single-core NYY with overall braiding used as EMC-relevant screening
• EMC-compliant
• Discontinued product - Will be substituted by ÖLFLEX^® CHAIN 809 SC CY
• product information (PDF)

Benefits

• Cost-effective, double-insulated/sheathed single-core cable for fixed, unprotected installation indoors or outdoors, at most occasional flexing taking into account the higher minimum bending radii of 12.5 x cable outer diameter
• High degree of screening enables a very good EMC performance
• No additional protection such as a closed cable duct or protective conduit is required for installation

Application range

• Very suitable for power circuits as an external connection or for the internal wirings in electric and electronic equipment
• In dry or damp interiors with low mechanical stress conditions
• Can be used indoors as a connecting cable to the inverter in the photovoltaic sector
• Outdoor use is possible within the indicated operating temperature range

Product features

• Flame retardant acc. to IEC 60332-1-2
• UV and weather-resistant according to ISO 4892-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)

Product Make-up

• Fine-wire strand made of bare copper wires
• Core insulation: Based on PVC
• Nonwoven wrapping/plastic foil
• Tinned-copper braiding
• Outer sheath: Based on PVC
