Data transmission cable with colour code acc. to DIN 47100

AED 1.00

Available Now!

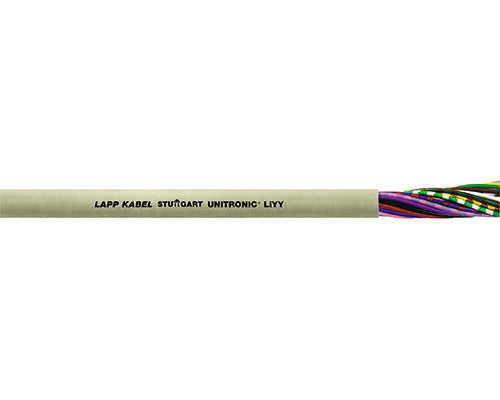

Data transmission cable with colour code acc. to DIN 47100

UNITRONIC® LiYY: Low-frequency PVC data cable DIN47100 coded Flexible (0.34mm² multi-wire Maxi TERMI-POINT®) Flame retardant, Instrumentation Control Automation

    • The classic for multi-functional use
    • Further dimensions/colours on request

    product information (PDF)


    • Space-saving installation due to small cable diameters
    • Multifunctional application possibilities
    • Depending on the quantity, the outer sheath can also be produced in other colours to match your application needs

    Application range

    • UNITRONIC® LiYY is also used as a control and signal cable in electronics of computer systems, electronic control equipment, office machines, balances, etc.
    • Dry or damp rooms
    • Occasional flexing

    Product features

    • Despite the large number of cores, LiYY data cables have small outer diameters
    • Flame-retardant according IEC 60332-1-2

    Norm references / Approvals

    • Based on VDE 0812

    Product Make-up

    • Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires
    • Core insulation made of PVC
    • Outer sheath made of PVC
      Outer sheath colour: grey (similar to pebble grey/ RAL 7032)
